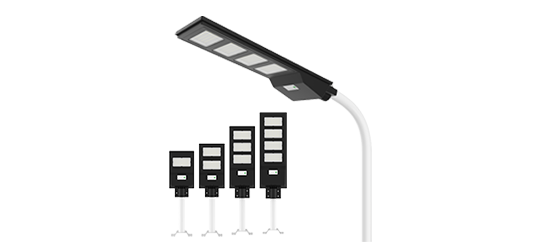

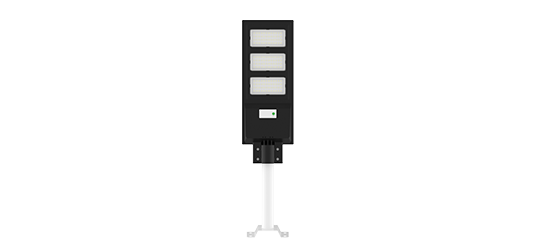

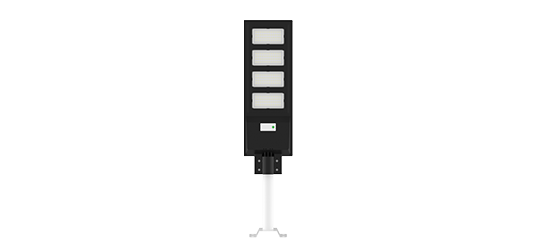

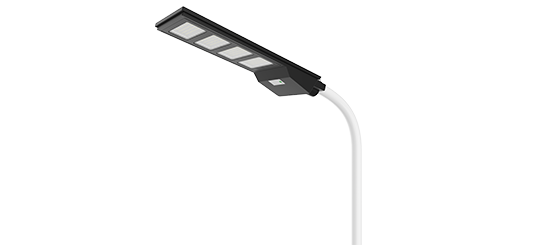

EXC-CR-Z03 Solar Powered Street Lamp

EXC-CR-Z03 solar powered street lamp uses high performance lithium battery and polycrystalline solar...

Luminarias led solares | farolas solares | luz de calle solar

3.2V low voltage design, safe and reliable.

High protection design, IP65 waterproof.

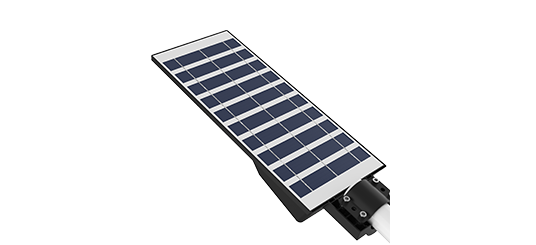

Use lithium battery and polycrystalline solar panel.

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC-CR-Z03

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Description

Lamp Model	EXC-CR-Z03-10	EXC-CR-Z03-20	EXC-CR-Z03-30	EXC-CR-Z03-40
System power	10W	20W	30W	40W
Lithium Battery	3.2V 3AH	3.2V 5AH	3.2V 10AH	3.2V 15AH
Solar Panel	Polycrystalline 5V 10W	Polycrystalline 5V 15W	Polycrystalline 5V 25W	Polycrystalline 5V 35W
Luminous flux	400 lm	800 lm	1200 lm	1600 lm
Lamp bead	2835/48PCS	2835/96PCS	2835/144PCS	2835/192PCS
Full power lighting hours	6Hrs
Charging time	4-6Hrs
Working mode	100% brightness in first 2Hrs, turn to 20% dim brightness + 30s 70% brightness when PIR detects people pass by in next 10Hrs
CCT	6000K-6500K
Rainy days	3-5 days
IP	IP65
Charging Time	1 Day
Material	Plastics
Working Temperature	-20℃〜+60℃
Installation method	Wall mounted / pole
Pole diameter	40mm
Recommended installation height	2.5~3.5m

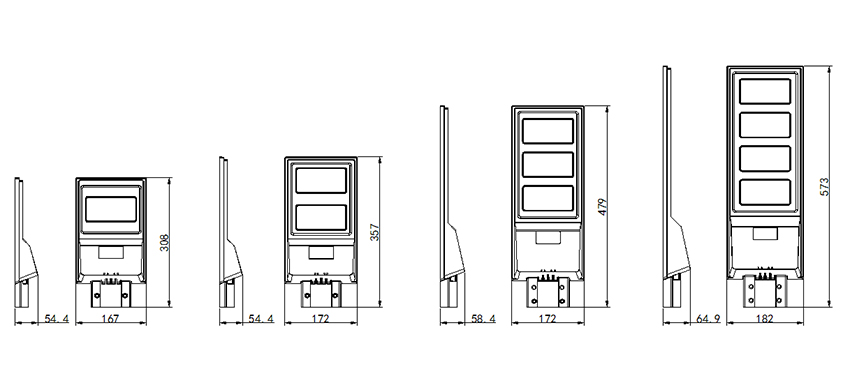

Product dimension	30816754.4mm	35717254.4mm	47917258.4mm	57318264.9mm
Package dimension	31817769.4mm	36718269.4mm	48918273.4mm	58319280mm
Gross Weight	1.0kg	1.5kg	1.9kg	2.2kg

INSTALLATION

RELATED CASES

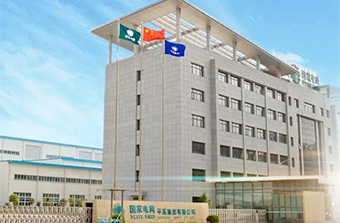

EXC Smart Street Lights Illuminate the National Grid Science and Technology Park

The smart street light project provided by EXC for State Grid Pinggao Group, has been successfully completed and accepted.

EXC Smart Street Light Helps the Construction of a Safe and Smart Campus System in Shijiazhuang

Shenzhen EXC-LED Technology Co., Ltd. supports the development and construction of smart campus in the powerful way of using smart products and technological innovation.

Here It Comes the Smart Street Light in the Central Park of Chaoyang City, Liaoning Province!

EXC assists in the overall improvement of Central Park of Chaoyang City in terms of service, management, and development concepts.

For more details, please
contact...

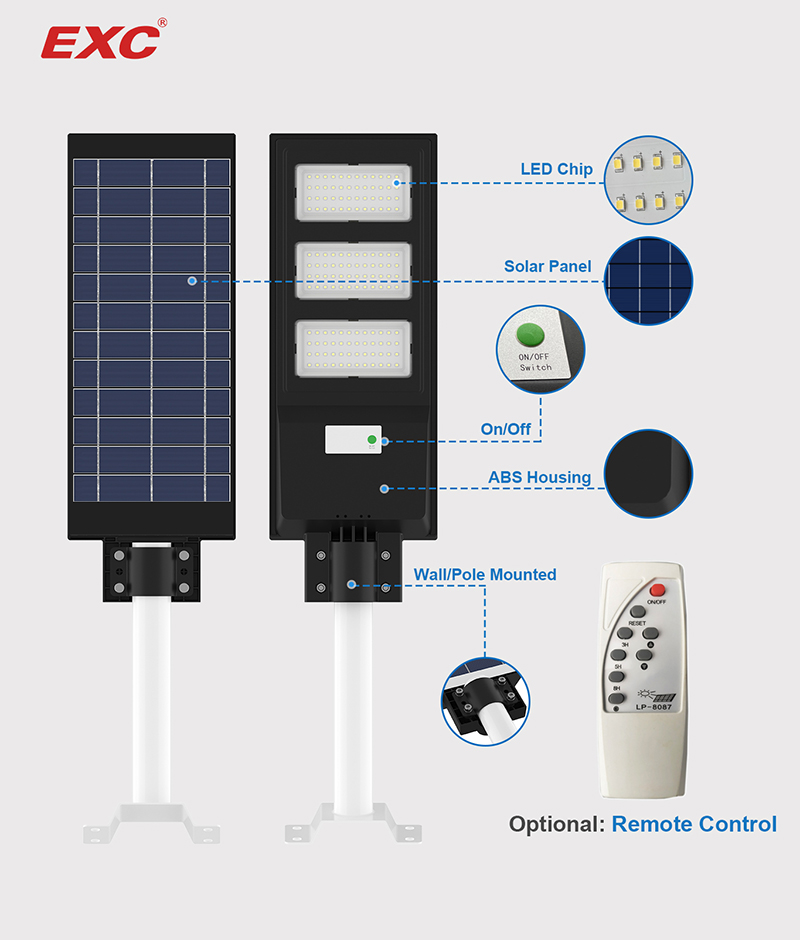

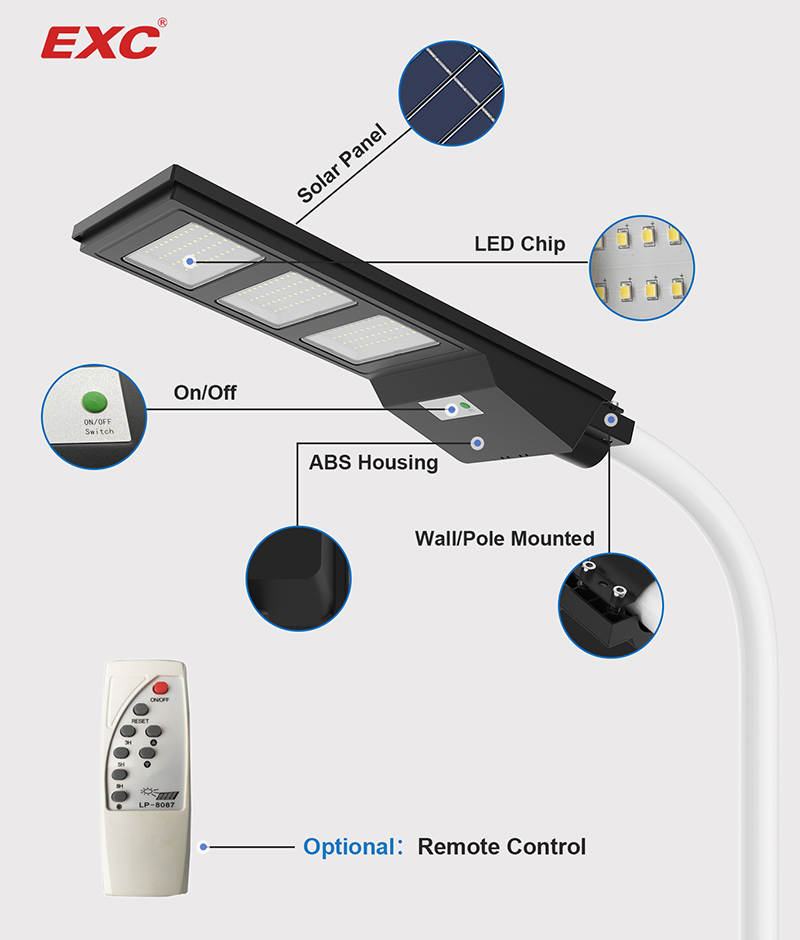

EXC-CR-Z03 solar powered street lamp provides highly competitive solutions based on its high performance, high reliability, and high light control technology. The beautiful shape will also become a unique scenic spot in the residential area.
The photoelectric separation design ensures the stability of each system and avoids heat accumulation.
The light assembly is flexible, and the wall installation / lamp pole installation can be selected according to the real conditions.
Convenient installation, multi-mode installation structure.
Protection against electric shock: Class Ⅲ
The solar power led street lamp adopts integrated plastic design, streamlined design, beautiful and generous, suitable for all courtyard lighting, forming an optimal lighting environment.
Integrated design, modular production, and simple installation.
Integrated packaging, convenient transportation, and installation.
