EXC-RL-Z02-RA2 Series LED Street Light

EXC-RL-Z02-RA2 series led street lamps use imported optical-grade materials and various light distri...

PLC/ZIGBEE/light sensor and other intelligent control are optional

Use well-known brand waterproof isolation switching power supply with high safety and reliability

Various light distribution angles, suitable for various lighting applications

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

SPECIFICATION

Specification
Description
Lamp ModelEXC-RL-Z02-RA2
Power(W)60W120W
Input Voltage (Vac)AC90-305V 50/60HZ
Power Factor (PF)>0.95
Light Source3030/5050
CCT (K)3000K/4000K/5000K/5700K
CRIRa>70
Efficiency>130lm/W;150lm/W
Lifespan>50000H
MaterialADC12
IPIP66
Working temperature-40℃ to +50℃
Working humidity10%~90%RH
Available interface0-10V/PWM

EXC RA2 series LED street light lamps are high-efficiency lights designed by EXC for outdoor road lighting.
Environmental protection and pollution-free: all materials of the lamp are free of lead, mercury and other harmful substances that affect the environment; there is no ultraviolet, infrared and other radiation harmful to human health; there is no light pollution to the surrounding environment;
The outdoor electrostatic spraying process on the surface of the lamp body has strong corrosion resistance and weather resistance, and is suitable for various complex environments;
The lens adopts high-quality imported optical-grade materials, with accurate light distribution, high efficiency and strong weather resistance;
Protection against electric shock: Class 1

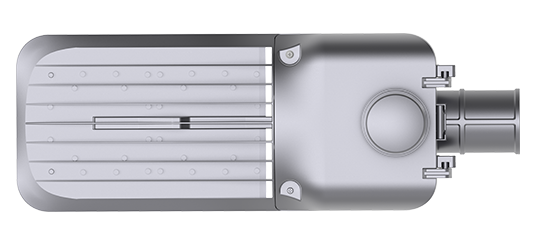

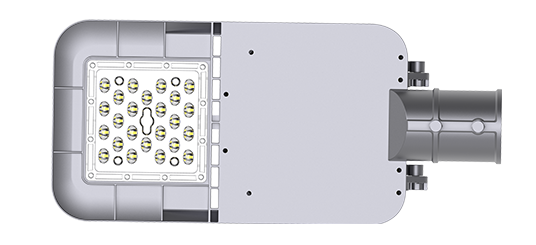

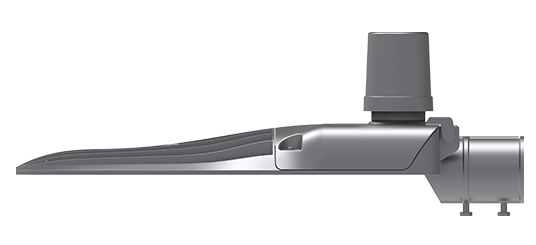

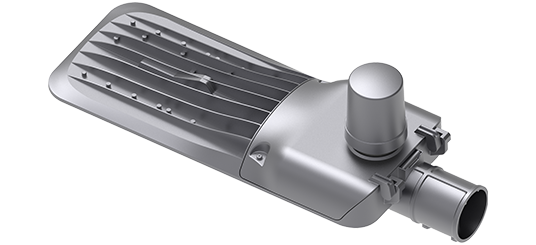

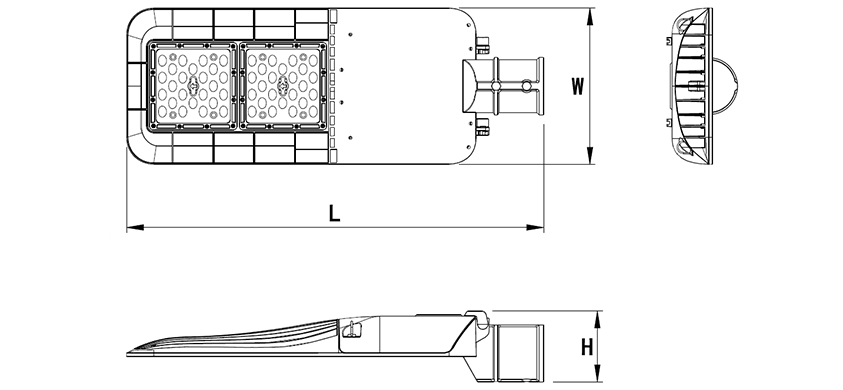

STRUCTURE

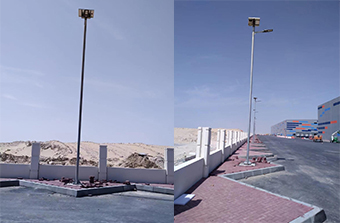

RELATED CASES
