Park Lighting

EXC Smart Street Lights Illuminate the Venues of Asian Youth Games

PROJECT OVERVIEW

EXC provide Sparrow series smart street lights to the Asian Youth Games, creating a humanistic atmosphere of the venue garden environment and contribute to its success.

Holding an international comprehensive sports meeting is a booster for the development of a city, and it is a test and improvement of a city's comprehensive strength. From the moment the bid was successful, Shantou officially entered the "Asian Youth Games Time"!

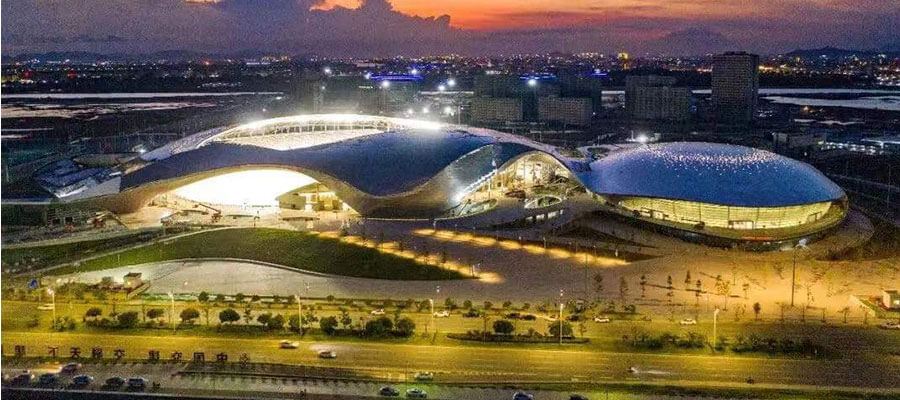

Asian Youth Games


The East Campus of Shantou University and the Asian Youth Stadium Project (Phase I) is a key project in Guangdong Province and Shantou City. The project is located in the northeast corner of the Tagangwei area in the East Coast New City of the Overseas Chinese Experimental Zone. The total construction area is 146,400 square meters. The project includes the construction of a 22,000-seat stadium, an 8,000-seat gymnasium and training hall, as well as roads, squares, and greening , Parking lot and other outdoor ancillary projects, and will be used as the opening ceremony of the 2021 Shantou Asian Youth Games and track and field, gymnastics competition venues.

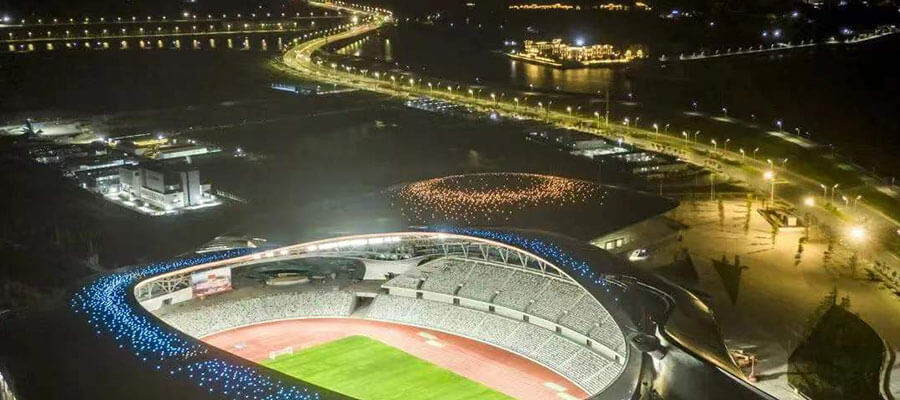

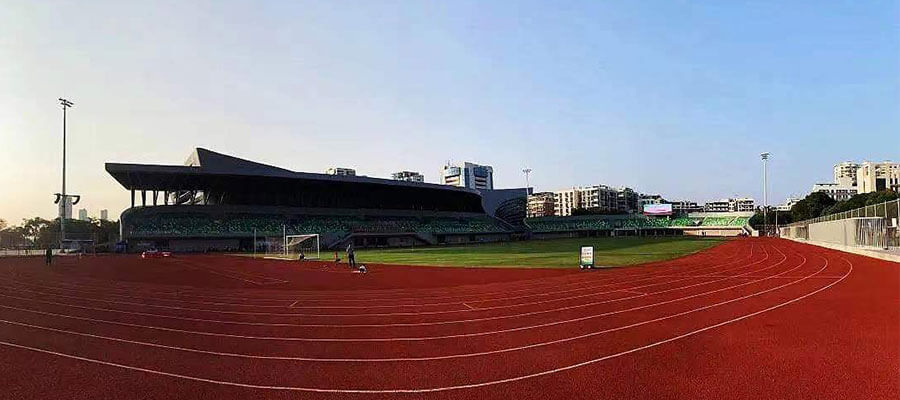

Competition venue of Asian Youth Games


According to the principle of "simplicity, safety and splendor", Shenzhen EXC Technology Co., Ltd. provided various series of street lights for the East Campus of Shantou University and the Asian Youth Conference Hall (Phase I) project, creating a humanistic atmosphere of the venue garden environment. The people of Shantou gave a perfect answer to the holding of the Asian Youth Games next year.

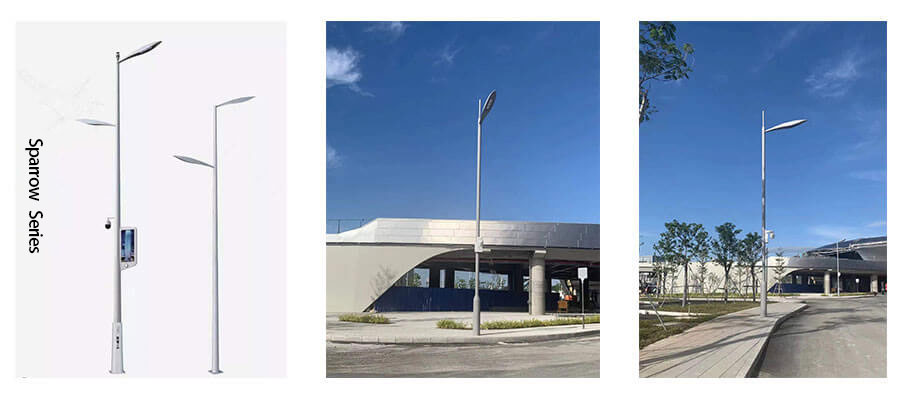

Sparrow series smart street light


The Sparrow series of smart street lights, combined with the characteristics of the Asian Youth Games, show the characteristics of youth, vitality, jumping, and agility. The street lamp shape blends with the architectural style of the venue, adding a beautiful scenery to the Asian Youth Games.


Sparrow smart street lights


The poles are 5 meters and 9 meters respectively, using NB-IOT communication, with current, voltage, power, temperature, leakage detection functions. They have functions such as over-current protection, short-circuit protection, multi-network intelligent switching backup, disconnected data storage, network recovery. The continued data transmission follows the planning and design principles of green humanities, inheritance and innovation, integration and sharing, convenience and safety, and flexibility and intensiveness.


smart street lights


The smart street light is equipped with LED modules, dimming drivers, single lamp controllers, NB IoT cards, smart gateways, smart power supplies, smart control and other equipment to achieve smart lighting functions based on smart lighting functions, integrated video surveillance, public broadcasting , 5G micro base station (reserved) and other functions. With the Internet of Things, big data and artificial intelligence technology as the core, provide smart management and smart applications for the daily operation of smart street lights, provide visual display and management, and facilitate real-time control Operational status and data, to achieve refined management.


Its intelligent lighting function can switch lights adaptively, realize adaptive switch lights according to real-time brightness; brightness adjustment, realize brightness power adjustment, realize energy saving and emission reduction; automatic fault and work order dispatch, realize fault monitoring, and automatically locate fault location , And dispatch work orders for quick maintenance.


Sparrow series lamp holder


The Sparrow series lamp holder has a simple and firm structure, excellent heat dissipation, strong corrosion resistance and weather resistance, and a longer life. The lens adopts high-quality imported optical-grade materials, which is deeply hidden and anti-glare, bright and pure, simple and dynamic, artistic and functional, and realize smart lighting functions through LED modules and dimming drivers.

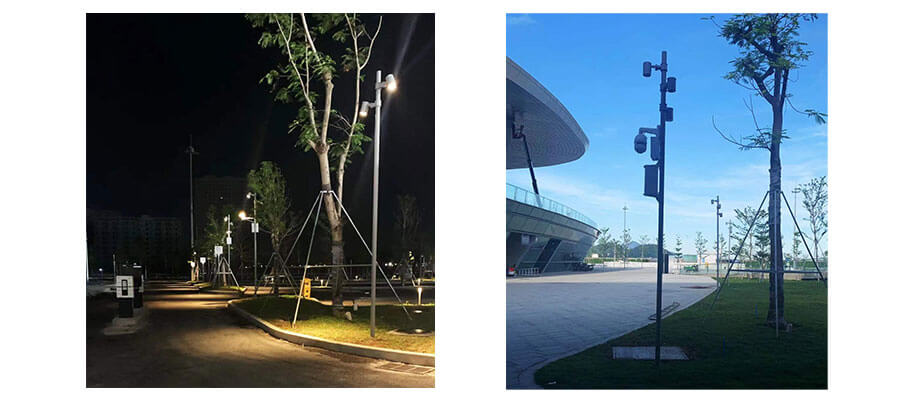

T2 5m landscape light


The T2 5m landscape light is composed of LED 24W*2 flood light, input voltage is DC24V, DMX512 dimming, color temperature 3000K, color rendering index Ra>80, beam angle 25°, light outlet with honeycomb anti-glare device, Let athletes avoid the interference of glare and spilled light in the course of the competition and during the rest period. The lighting is evenly distributed, the colors are pure, and the visual experience is more comfortable. The driver is placed inside the light pole to realize smart lighting and smart power supply functions.


T2 landscape lights


T3 5m landscape light


The T3 5m landscape light is composed of LED 24W*3 flood light, input voltage is DC24V, color temperature is 3000K, color rendering index Ra>80, beam angle is 25°. Light outlet is also equipped with honeycomb anti-glare device, hoop installation . The driver is placed inside the light pole to realize smart lighting and smart power supply functions. The soft light source of street lamps creates a warm garden atmosphere.

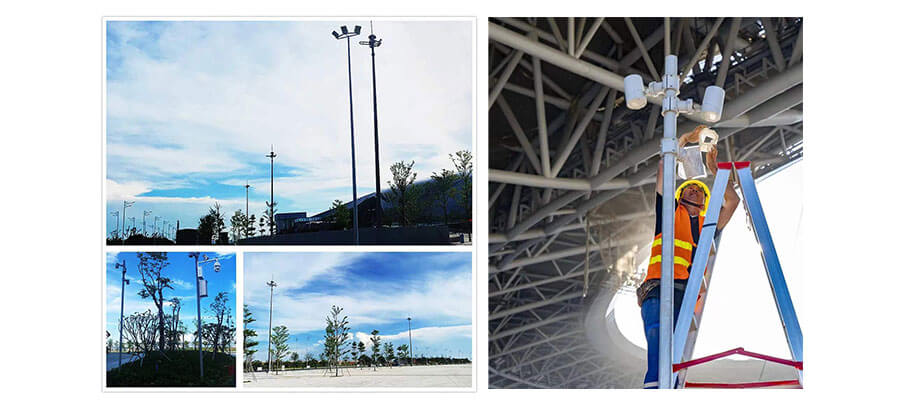

TS1 20m landscape light


The TS120m landscape light is composed of LED 250W*4 flood light, dimming driver, intelligent power supply and other equipment, professional light distribution lens, anti-ultraviolet aging, no glare, no pollution, suitable, uniform illuminance and brightness, ideal Light color, creating a good lighting environment. Fast heat dissipation contributes to longer lamp life, convenient installation and debugging, energy saving, reliability and safety.

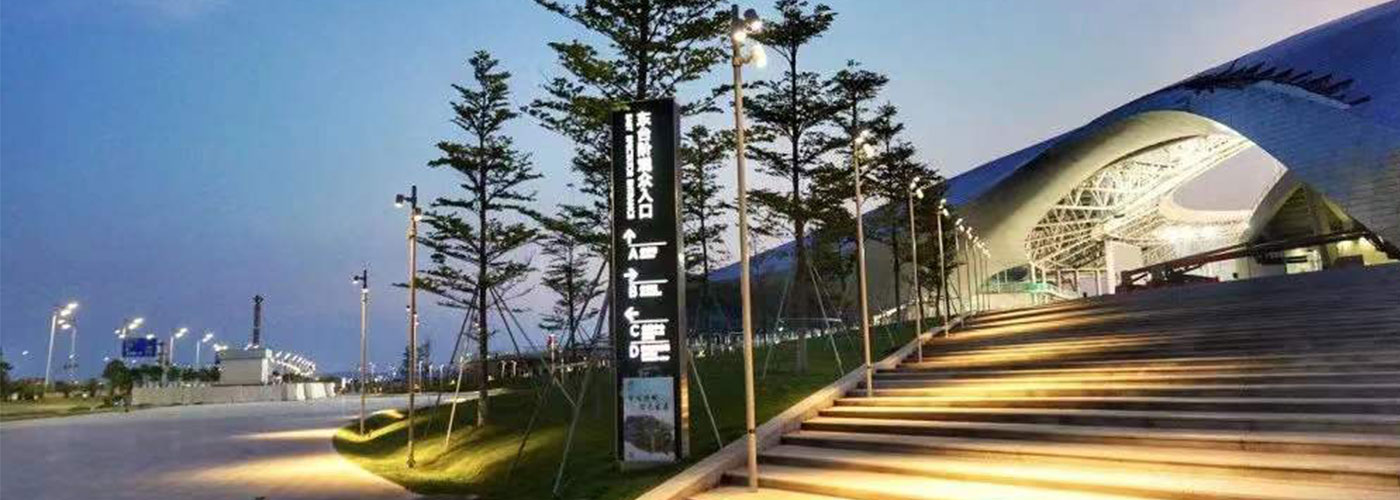

Asian Youth Games Venu


As the provider of the garden street light project for the East Campus of Shantou University and the Asian Youth Club (Phase I), EXC provide high-quality professional smart street lighting products and overall solutions, bring healthy, comfortable, smart and energy-saving light to the venues.

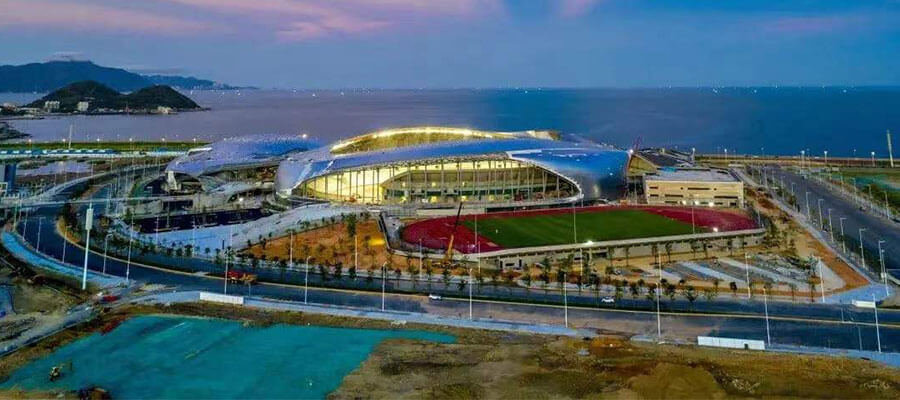

Asian Youth Games Venu


The overall design of the East Campus of Shantou University and the Asian Youth Club Pavilion project showcases the marine cultural characteristics of Shantou people's "standing on the tide and washing the sand with big waves" and the spirit of hard work and innovation of Shantou people. The architectural style combines the special coastal characteristics of Shantou. The characteristics of ocean waves and sandy beaches are introduced into the site and the building, so that the building and the site are integrated. The smart street lamp series products of EXC, when matched with the stadium buildings, can fully show the elegant and light effect, and are more modern. They lay the foundation for Shantou to host a unique, distinctive and splendid sports culture event.

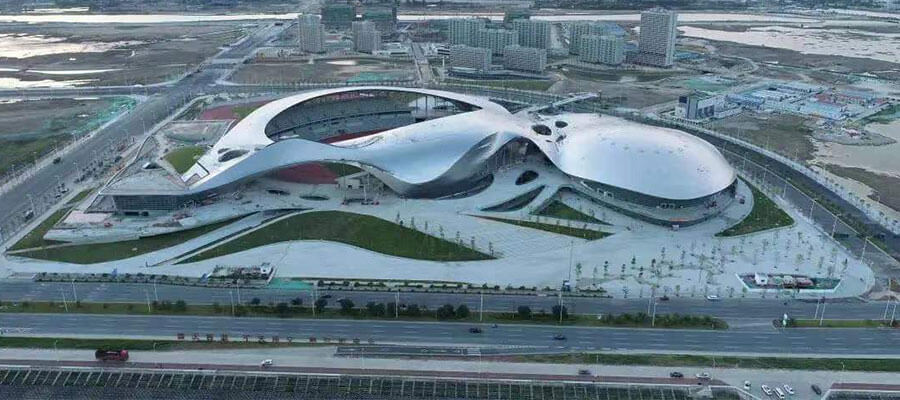

Asian Youth Games stadium project


The East Campus of Shantou University and the Asian Youth Games Stadium Project not only undertakes the important mission of the main venue of the Asian Youth Games, but also comprehensively promotes Shantou's educational development, promotes the expansion of the scale and quality of institutions of higher learning, and an important measure to create a regional education highland. In the ticking countdown, the Shantou Asian Youth Association opened a new starting point and entered the countdown sprint stage. "Hold a meeting well and invigorate a city" is an inspiring drum, and it is an indomitable charge. Shantou will welcome the world's eyes with the most beautiful posture.
