EXC Solar Street Lights Neptune Ⅱ Series

EXC Solar Street Lights Neptune Ⅱ Series use the integrated design, provide high efficiency illumina...

Ultra-thin lamp holder design, simple and atmospheric;

Warranty: 5 years, we will supply free maintenance or replacement for damaged parts during the warranty period.

Integrated design, with customized bracket, easy to install;

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC Neptune Ⅱ Series

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Description

Lamp Model	EXC-CR-W23-30	EXC-CR-W23-40	EXC-CR-W23-60	EXC-CR-W23-80	EXC-CR-W23-100	EXC-CR-W23-120
System power	30W	40W	60W	80W	100W	120W
Luminous Flux	5100LM	6800LM	10200LM	13600LM	17000LM	20400LM
Li-ion Battery	12.8V/18AH	12.8V/24AH	12.8V/36AH	12.8V/42AH	12.8V/56AH	12.8V/60AH
Solar Panel	18V/50W	18V/65W	18V/80W	18V/100W	18V/130W	18V/140W
Install Height	3M ~ 4M	4M ~ 6M	5M ~ 7M	6M ~ 8M	8M ~ 10M	10M ~ 12M
Waterproof	IP65
Lighting source	3030
CCT	3000-6000K
Beam angle	60*120
Working mode	M1:100% power last 2 hours,50% Power for next 4 hours,and 20% power till daytime; M2:First 4 hours, 100% when people coming,50%power when people leave,other 8 hours,50% power when people conming,10% power when people leave.
Working Time	3-5 Rainy days
Working Temperature	-20°〜+60°
Solar Charging Time	5-6 Hours by Bright Sunlight
Material	Aluminium alloy + Tempered Glass
Warranty	3 Years
Product Dimension	820385180mm	960385181mm	1190385183mm	163038555mm	195038555mm	195038555mm
Packaging dimension	920400200mm	1060400200mm	1290400200mm	173040080mm	205040080mm	205040080mm
GW	12kg	18kg	20kg	28kg	36kg	45kg

STRUCTURE

RELATED CASES

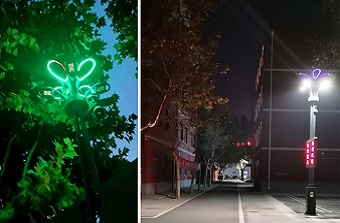

EXC Smart Street Lights Illuminate the National Grid Science and Technology Park

The smart street light project provided by EXC for State Grid Pinggao Group, has been successfully completed and accepted.

EXC Smart Street Light Helps the Construction of a Safe and Smart Campus System in Shijiazhuang

Shenzhen EXC-LED Technology Co., Ltd. supports the development and construction of smart campus in the powerful way of using smart products and technological innovation.

Here It Comes the Smart Street Light in the Central Park of Chaoyang City, Liaoning Province!

EXC assists in the overall improvement of Central Park of Chaoyang City in terms of service, management, and development concepts.

For more details, please
contact...

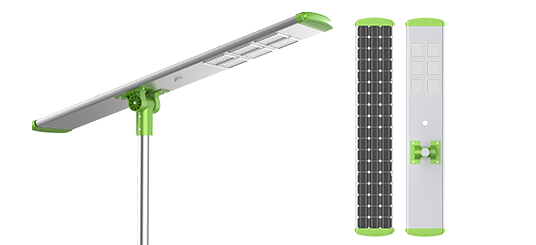

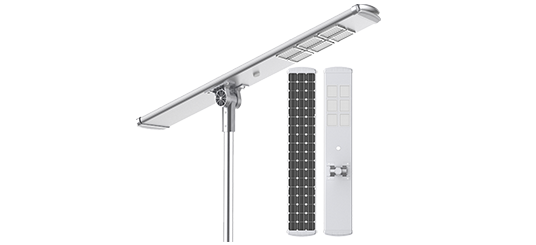

EXC Neptune Ⅱ series solar led street lights of 30W-120W are high-efficiency lighting solutions for illumination.
They are designed with an integrated solar panel and lamps and can be used for road lighting in cities, villages, industrial areas and other occasions.
High-efficiency monocrystalline solar panel, lifespan ≧25 years;
High-precision digital boost constant current control, high efficiency and high accuracy of constant current, which ensure longer lifespan of the battery;
Metal lamp body, IP65 protection grade, easy to cope with various harsh Environments;
Working time settings: 0-15 hours, power can be adjusted 0%-100%;
New 2.4G wireless/ infrared remote control, the solar power lamp can change the paremeters and read the message from the Handheld devices;
