EXC LED Street Light Guardiance Series

EXC Guardiance series led street lamps use modular heat dissipation technology and high performance ...

Adjustable installation angle, making the light efficiency higher.

Use well-known brand waterproof isolation switching power supply with high safety and reliability.

Diverse light distribution angles are adopted for various road lighting applications.

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

SPECIFICATION

Specification
Description
Lamp ModelEXC-RL-Z03
Power(W)60W120W180W240W300W
Input Voltage (Vac)AC90-305V 50/60HZ
Power Factor (PF)≥ 0.95
Light Source3030/5050
CCT (K)3000K/4000K/5000K/5700K
CRIRa>70
THD<15%
Efficiency≥130lm/W;≥160lm/W
DriverMOSO、SOSEN、Inventronics、MEANWELL
Light Distribution60°/90°/144*60°/155*75°/ Type2/Type3
Lifespan>50000H
MaterialADC12/AL6063/PC
IPIP66
IKIK10
Working Temperature-40℃ to +50℃
Working Humidity10%~90%RH
Available Interface0-10V/PWM
EXC Guardiance series LED street lights are high-efficiency lights designed by EXC for outdoor road lighting.
Environmental protection and pollution-free: all materials of the lamp are free of lead, mercury and other harmful substances that affect the environment; there is no ultraviolet, infrared and other radiation harmful to human health; there is no light pollution to the surrounding environment;
The outdoor electrostatic spraying process on the surface of the lamp body has strong corrosion resistance and weather resistance, and is suitable for various complex environments;
The lens adopts high-quality imported optical-grade materials, with accurate light distribution, high efficiency and strong weather resistance;
Protection against electric shock: Class 1

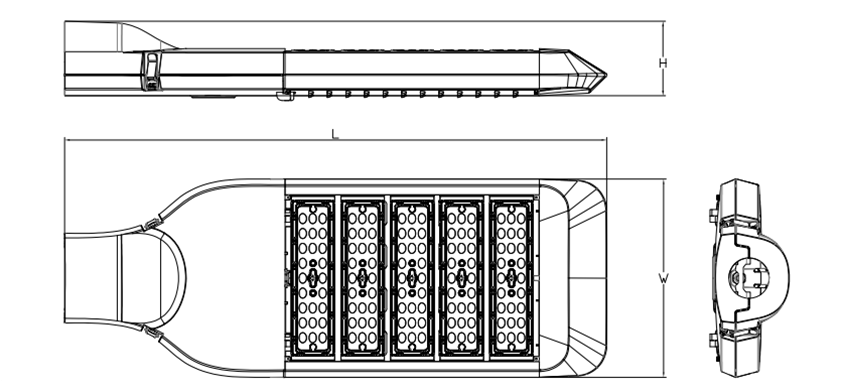

STRUCTURE

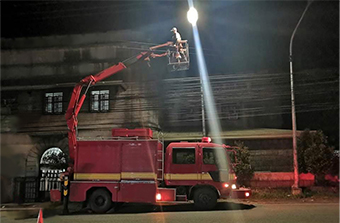

RELATED CASES
