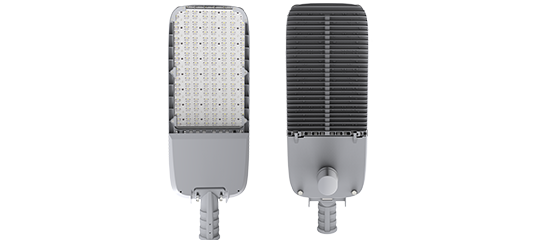

EXC LED Road Street Light B2 Series

EXC LED Road Street Light B2 Series are designed for city road, highway, alley, walkway, park, garde...

Die-cast aluminum housing with internally installed heat sink

Tempered glass cover optional

Side-entry and post-top mounting optional with -5° to +15° tilt steps

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

SPECIFICATION

Specification
Description
LampEXC-RL-Z05-B2
Power(W)30-60W80-100W120-150W180-250W300-400W
LED3030, 5050 Optional
Efficiency(LM/W)130-180(LM/W)
Lifespan(H)50000
IPIP66
IKIK08
DriverMOSO, SOSEN, INVENTRONICS Optional
Input Voltage220-240V AC
InstallationHorizontal&Vertical installation ∕ mounting interface arm φ40-60mm
EXC LED Road Street Light B2 Series are high-efficiency lights designed by EXC for outdoor road lighting.
Die-cast aluminum housing with internally installed heat sink for optimum thermal perfor-mance and long lifespan;
Tempered glass cover optional; Corrosion resistant polyester powder coating;Utilizes high brightness LEDs, efficiency higher to 180lm/w;
With asymmetrical wide beam angle distributions(Type II, Type III and Type IV) are avail-able for customer specific lighting tasks;
Side-entry and post-top mounting optional with -5° to +15° tilt steps;
CE, CB, RoHS, ENEC, IP66, IK08,TM-21,LM-79;

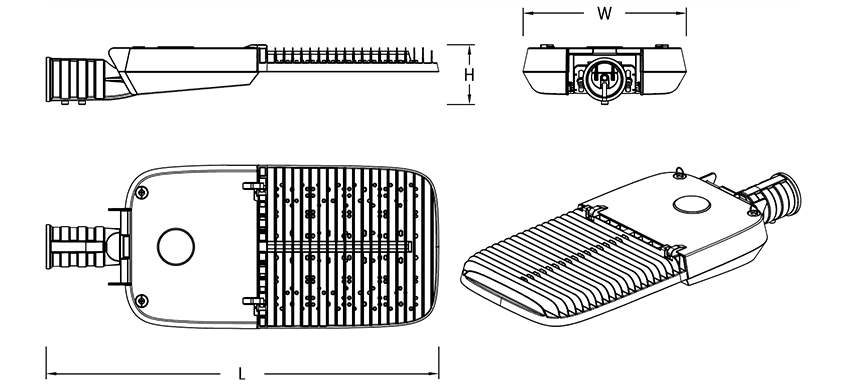

STRUCTURE

RELATED CASES

For more details, please
contact...
