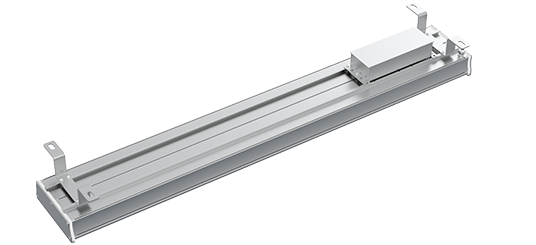

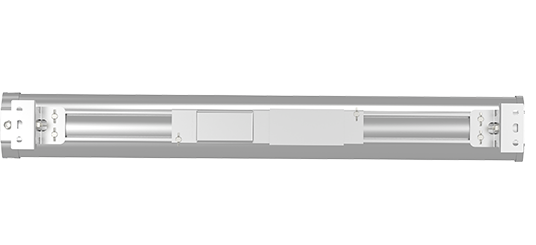

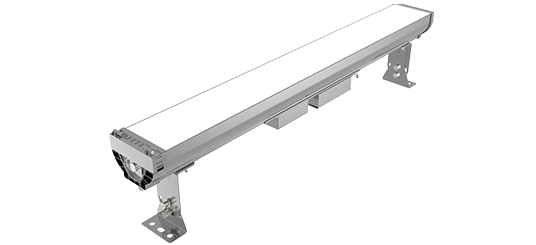

EXC-TL-Z04 LED Tunnel Lighting

EXC-TL-Z04 tunnel light series, specially designed for tunnel lighting, strong and durable. main bod...

Linear design, the length can be customized flexibly

Seamless docking, uniform light output

PLC/ZIGBEE and other intelligent control options

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

SPECIFICATION

Specification
Description
Lamp ModelEXC-TL-Z04
System Power15-30W45-60W90-120W150-180W
Power factor(PF)≥0.95
Light sourceLumileds
CCT(K)3000K/4000K/5000K/5700K
CRIRa>70
Efficiency≥120 LM/W
Lifespan>30000H
MaterialAL6063 Aluminum Alloy/Glass
IKIK07
IPIP66
Working temperature-30℃ to +45℃
Working humidity10%~90%RH
InstallationBracket Installation
EXC-TL-Z04 series LED tunnel lamp products are used in tunnels, offices , conference rooms, supermarkets, restaurants and other occasions.
Surface anodizing process, strong corrosion resistance and weather resistance, suitable for various complex environments
Free of harmful substances such as lead, mercury, etc. that affect the environment; and there is no radiation that is harmful to human health such as ultraviolet and infrared rays;
PLC/ZIGBEE and other intelligent control options
Anti-electric shock protection: Class 1

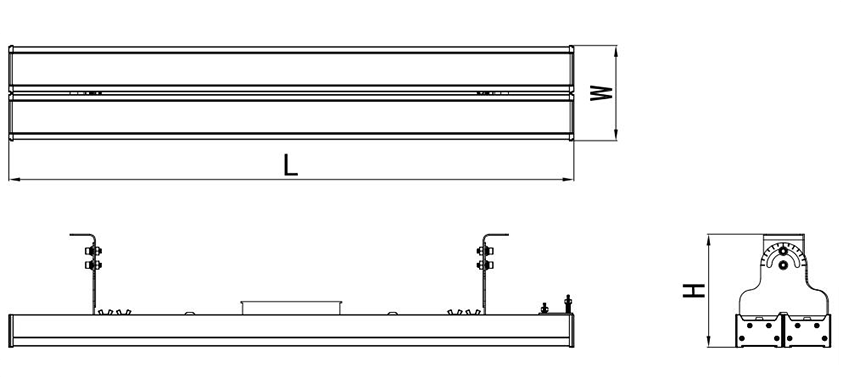

STRUCTURE

RELATED CASES
