Products Street Lights
street light led lamps
100w led street light
street lamp 100w
road light led for road
street light led lamps

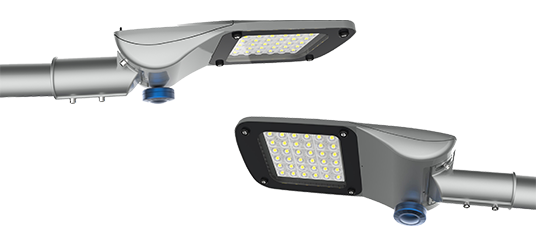

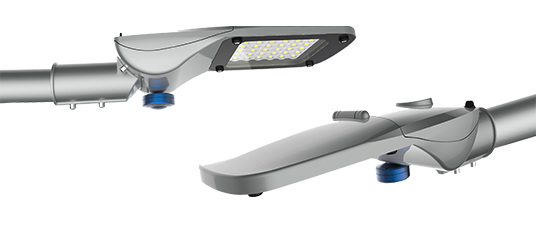

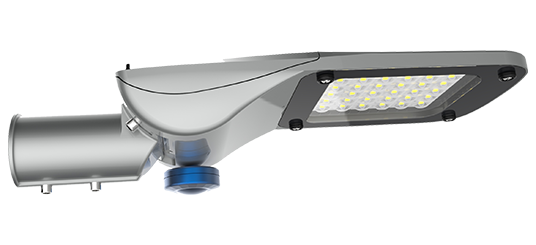

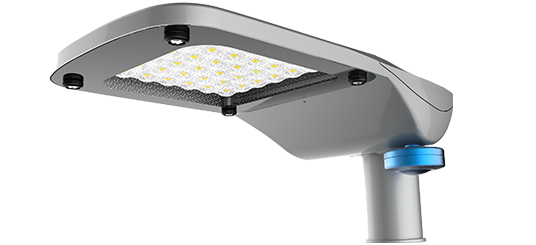

EXC Street Light Traveller Series

The EXC Traveller series integrated led street light provide a new solution for outdoor lighting. Va...

Integrated die-cast design, beautiful and generous;

Adopt concise and modern appearance design, streamline design, smooth surface, self-cleaning lamp design;

Power supply cavity freehand quick opening design, flip up, easy maintenance and installation;

Elevation angle of the street lamp can be flexibly adjusted according to the site conditions;

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

Traveller Series

Specification

Different Model Spec

User Manual

User Guide & Installation

SPECIFICATION

Specification
Packaging Details
Description
Lamp ModelEXC-RL-G01-050EXC-RL-G01-100EXC-RL-G01-150EXC-RL-G01-200
Lamp Power(W)50100150200
ConfigurationStandard Configuration(SMD 3030)
Input Voltage (Vac)220-240Vac
Frequency Range (Hz)50\60Hz±3Hz
Power Efficiency≥0.89≥0.91≥0.93≥0.93
Input Voltage Range100-305Vac100-305Vac100-305Vac100-305Vac
Max Input Current1.0A0.7A2.0A2.4A
Max Impulse Current≤50A≤70A≤60A≤60A
SourceEMC3030
Power Supply BrandMOSO, SOSEN, Inventronics
Lumen（lm）6000120001800024000
Storage Temperature（℃）-30 ~+45
Working Humidity10-90%
Lifespan（H）>30000
IP RatingIP 65
IK RatingIK 08
Product SpecificationEXC-RL-G01-050EXC-RL-G01-100EXC-RL-G01-150EXC-RL-G01-200
Length (mm) 417482542 612
Width(mm)267272302372
High(mm)155 160160185
Volume0.0172575450.020976640.026189440.04211784
PCS 1 1 1 1
G.W KG/PCS 7.258.9 10.411.45
The EXC Traveller series LED street light has become a highly competitive solution for road lighting with its high performance, high reliability, and high light control technology and its beautiful shape will also become a unique landscape of the city.
They are mainly suitable for road lighting of expressway, main road, secondary road, plaza and sport ground, etc.
Photoelectric separation design ensures the stability of each system and avoids heat accumulation.
Using 3030 light source, with professional light distribution design, thermal, structure, circuit, and power supply design, they have a very high cost performance.
This street lamp is an efficient green, energy-saving and environment friendly lighting.
High protection design, high impact resistance and waterproof and dust-proof performance.
Use integrated lamp body heat dissipation technology to provide excellent heat dissipation performance，which ensure longer lifespan of the lamp.
