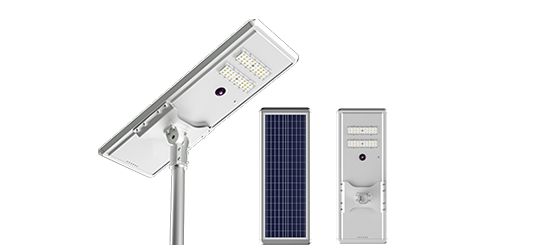

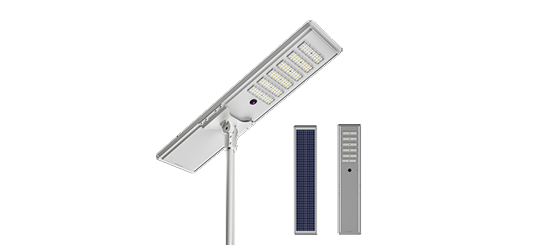

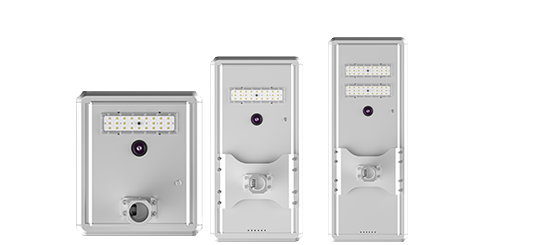

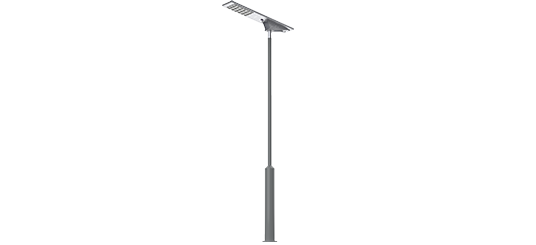

EXC-CR-Z01 Solar Powered Street Lamp

EXC-CR-Z01 solar powered street lamp with motion sensor is fully powered by solar energy. The street...

All-In-One LED Solar Street Lighting Systems | Solar Straßenleuchte Mit Bewegungsmelder

Microwave sensor for energy savings;

Built-in MPPT controller for the maximum charging efficiency;

High-efficiency mono crystalline solar panel, lifespan≧25 years;

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC-CR-Z01

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Product Detail

Description

Lamp Model	EXC-CR-Z01
System Power	20W	30W	40W	60W	80W	100W	120W	150W
Battery	12.8V/6Ah	12.8V/10Ah	12.8V/12Ah	12.8V/18Ah	12.8V/24Ah	12.8V/28Ah	12.8V/30Ah	25.6V/18Ah

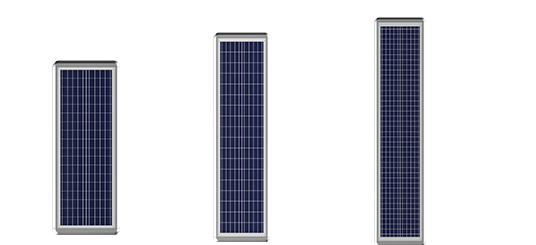

Mono Solar Panel	18V/25W	18V/40W	18V/40W	18V/60W	18V/60W	18V/90W	18V/90W	36V/100W

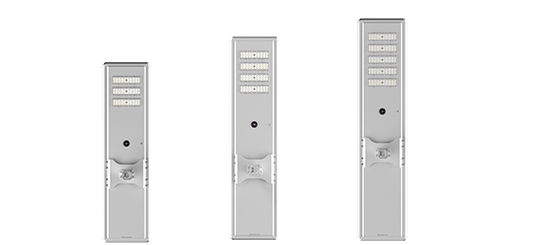

LED Source	SMD5050 /24PCS			SMD5050 /48PCS		SMD5050 /72PCS		SMD5050 96PCS
CCT(K)	3,000K - 6,500K
Beam Angle	78*148
Lifespan	＞50000H
Material	Die-casting Aluminum Alloy
IP	IP65
Charging Time	4-6 Hours
Working Temperature	-20℃ to +60℃
Working Time	5-7 Rainy Days
Working Humidity	10%~90%RH
Intelligent Control Mode	Light Control/Time Control/Human Body Induction/Intelligent Power Adjustment
Working Mode	First 2 hours, it is 50% brightness, when people/car passing by， the microwave sensor begins to work with 100% for 30S, then in the next 10hours, it is 30% brightness, when people/car passing by ，it is 100% brightness for 30S
Packing Details	One Kit / Carton
Warranty Period	3 Years

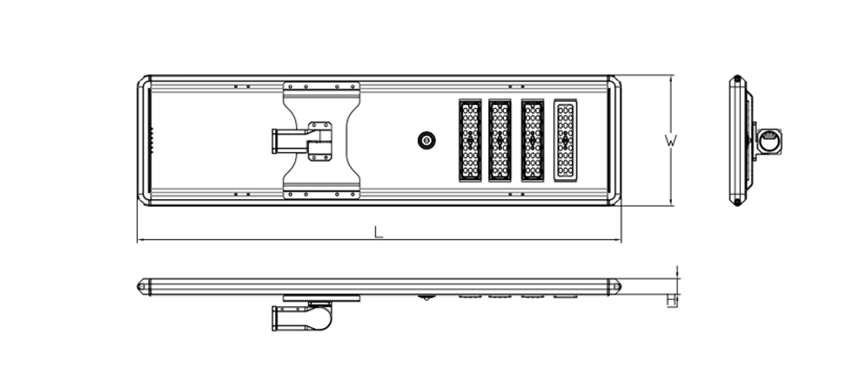

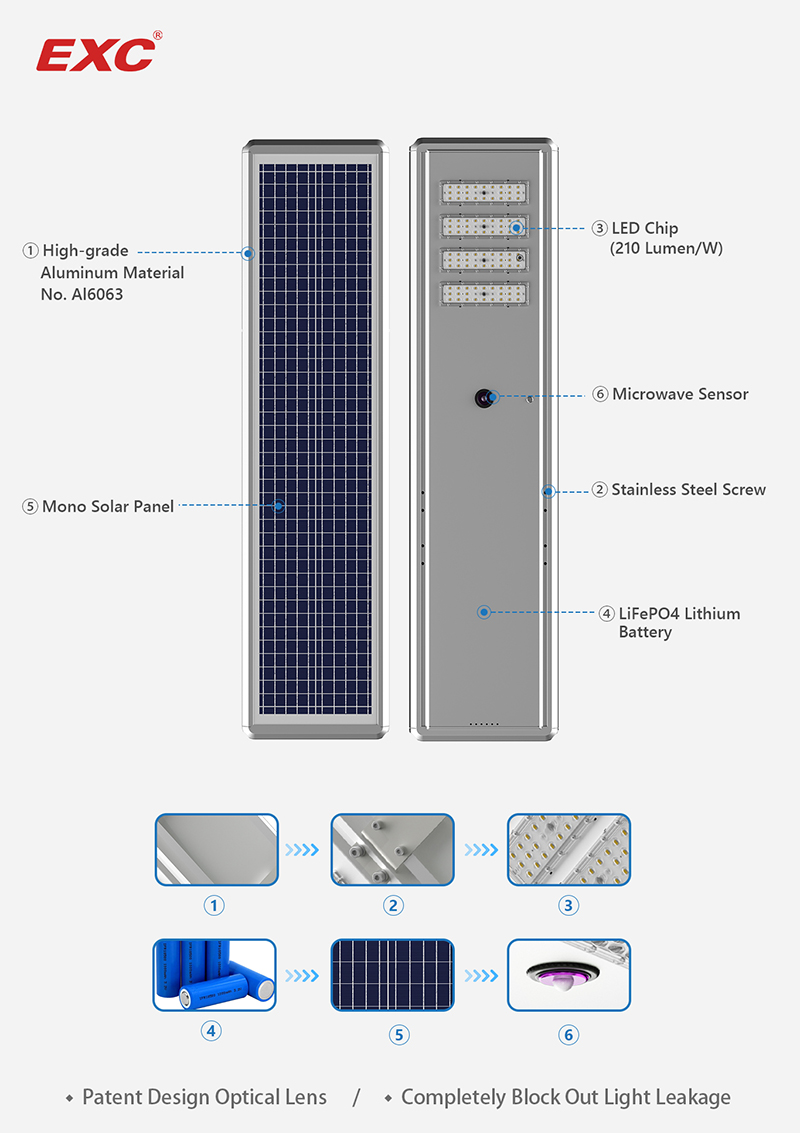

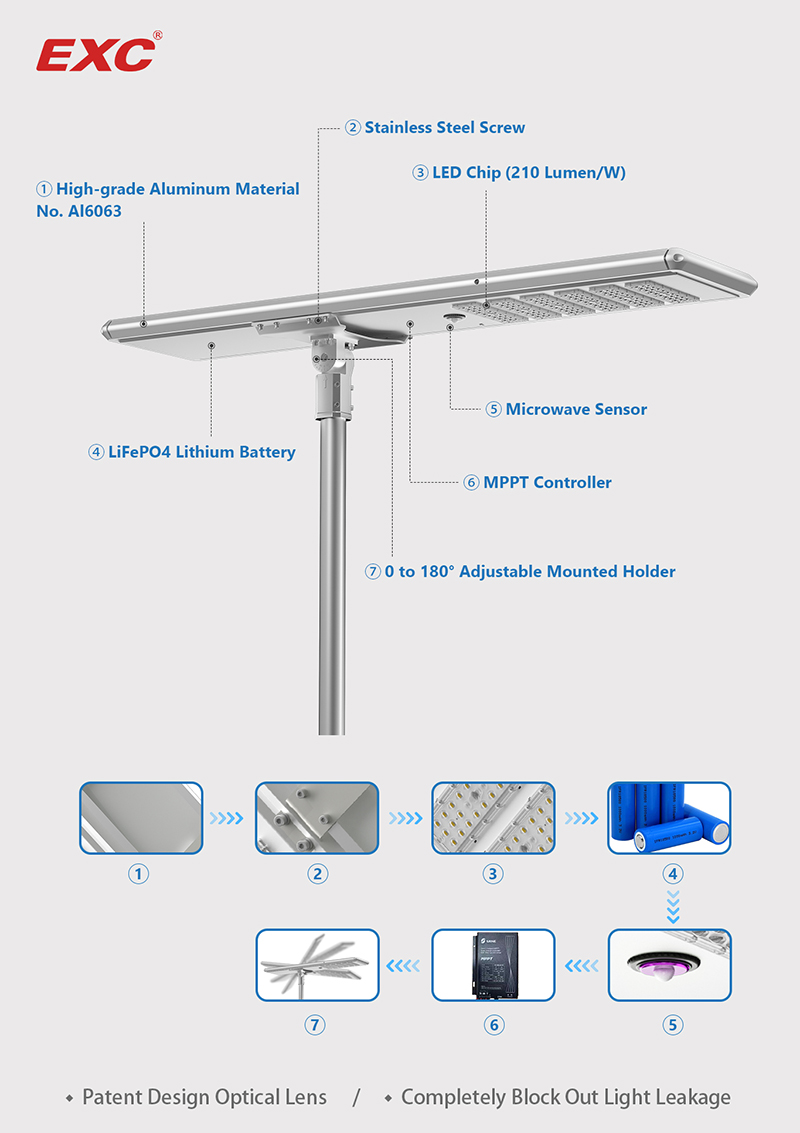

STRUCTURE

RELATED CASES

EXC Solar Powered Integrated Street Lamp With Motion Sensor Project

The lighting project consists of 150 pcs all-in-one solar street lamps, each with a sensor. Driven by solar energy used to control the light intensity from morning to evening based on the brightness.

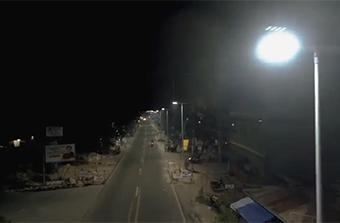

Case Study: Solar Powered Street Lights Project in Vietnam

EXC cr-z01 all in one integrated solar street lights with high performance solar panel and lithium battery are the best choice for Vietnam customers.

EXC Provide OEM Services For Australia Solar Street Lighting Project

As the leading solar street light manufacturer in China, EXC provide the OEM service for the Australia customers for their solar street lighting project.

For more details, please
contact...

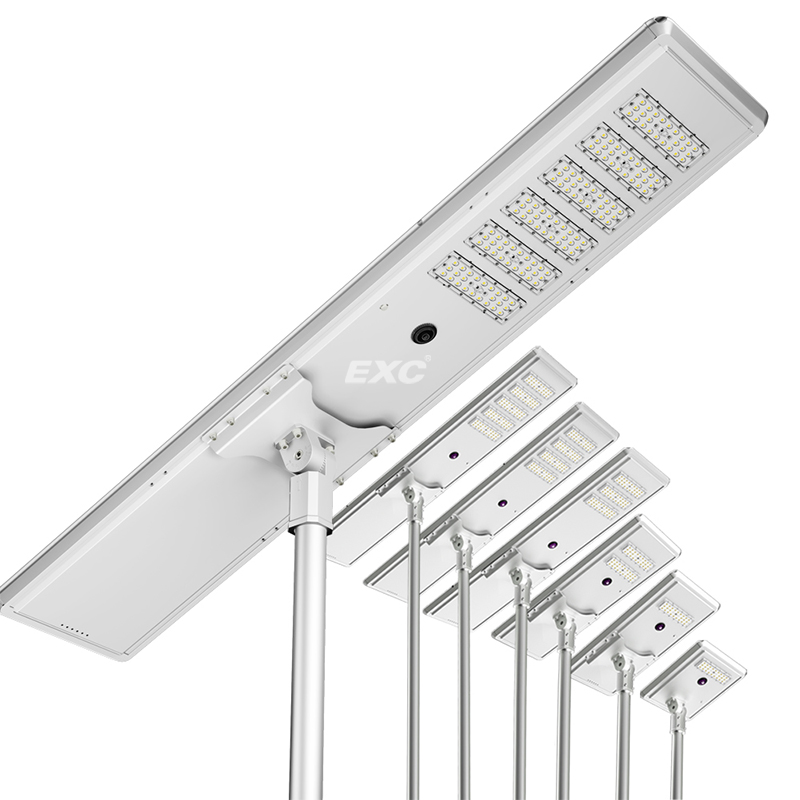

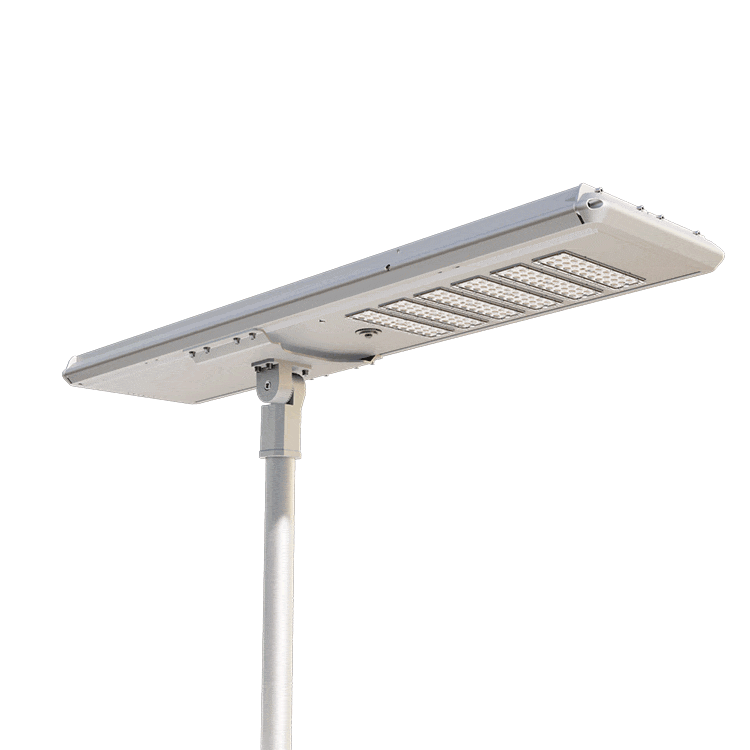

EXC-CR-Z01 integrated solar street light with motion sensor are high-efficiency lights designed for outdoor road lighting and the lights have obtained patent design. LED modular design, convenient for after-sales maintenance;
They are designed with an integrated solar panel and lamps and can be used for road lighting in cities, villages, industrial areas and other occasions.
High-precision digital boost constant current control, high efficiency and high accuracy of constant current, which ensure longer lifespan of the battery;
Surface of the lamp body is anodized with strong corrosion resistance and weather resistance, suitable for diverse complex environments; IP65 for waterproof.
Multiple light distribution angles to provide lighting in diverse outdoor lighting applications.
Class A lithium (LiFePO4) battery, cycle life ≧2000 times ;
Works with low standby electric current, convenient for long-distance transportation and storage;
