long lasting outdoor solar street lights

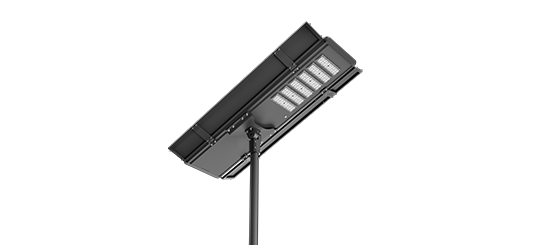

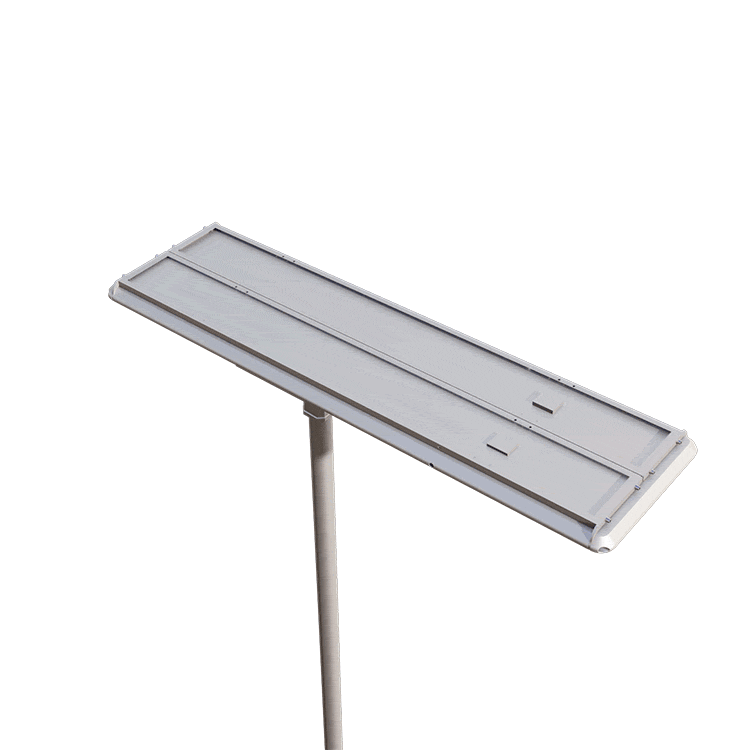

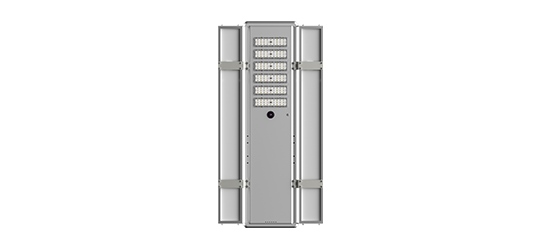

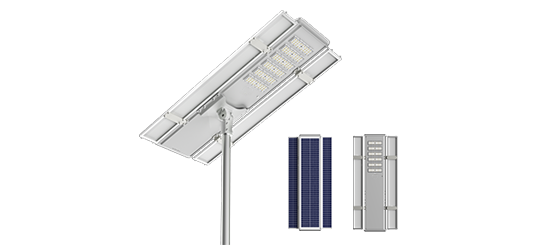

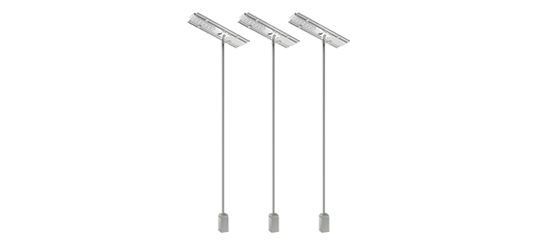

EXC-CR-Z01A Solar Powered Led Street Lights

EXC-CR-Z01A solar powered led street lights are used for outdoor lighting such as parking lots, firs...

Control Mode: Keep full brightness in 6 hours+ 50% in next 6 hours.

Metal lamp body, IP65 protection grade.

Class A Lithium (LifePO4) battery, cycle life ≧2000 times.

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC-CR-Z01A

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Product Detail

Description

Lamp Model	EXC-CR-Z01A
System Power	100W	120W	150W
Battery	25.6V 24AH	25.6V/30Ah	25.6V/36Ah
Solar Panel	Mono 36V/200W	Mono 36V/200W	Mono 36V/225W
Light Source	SMD5050/144PCS	SMD5050/144PCS	SMD5050/144PCS
Installation Height	10-12M	12-13M	13-15M
CCT(K)	3000-6500K
Working Time	5-7 Rainy Days
Charging Time	4-6 Hours
Lifespan	＞50000H
Material	Aluminum Body
IP	IP65
Working Temperature	-20℃ to +60℃
Working Humidity	10%~90%RH
Working Mode	Keep full brightness in first 6 hours , keep 50% brightness in next 6 hours.
Packing Detail	One kit per carton
Warranty Period	3 Years

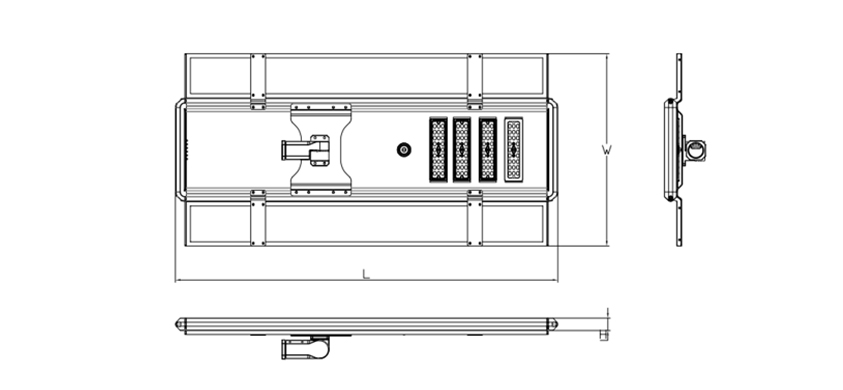

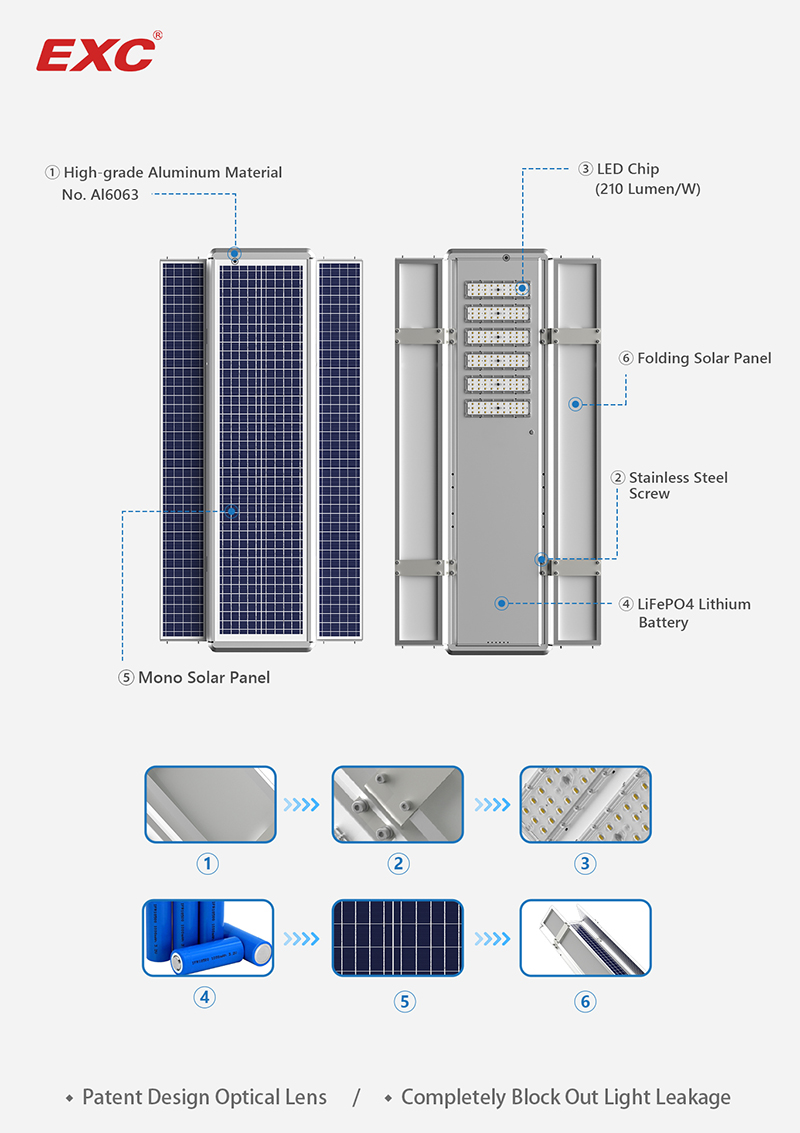

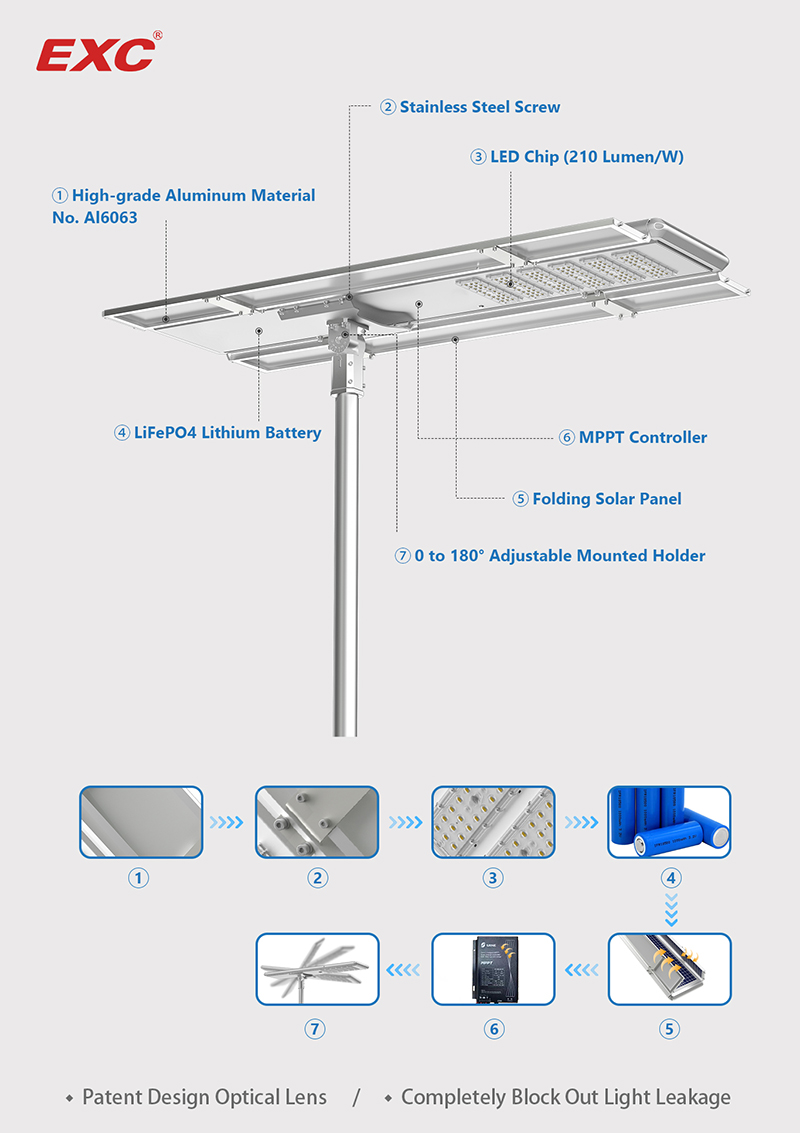

STRUCTURE

RELATED CASES

Case Study: Solar Powered Street Lights Project in Vietnam

EXC cr-z01 all in one integrated solar street lights with high performance solar panel and lithium battery are the best choice for Vietnam customers.

EXC Provide OEM Services For Australia Solar Street Lighting Project

As the leading solar street light manufacturer in China, EXC provide the OEM service for the Australia customers for their solar street lighting project.

60 Sets of Solar Street Lights in Luzon, Philippines

60 sets of solar street lights have installed in Luzon, Philippines. The Philippine customers provide their requirements and EXC team customize the street lights for them.

For more details, please
contact...

EXC-CR-Z01A solar powered led street lights are designed by EXC for outdoor road lighting.
Maximum power can reach 150W, which can support municipal road lighting needs.

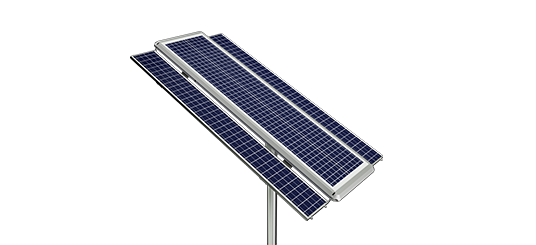

Folding monocrystalline solar panels are used to increase the configuration requirements, the lifespan≧25 years.
Various intelligent control schemes can be set up, energy saving and environmental protection.
The EXC-CR-Z01A solar powered street lamps have patent design and the protection against electric shock: Class Ⅲ
Use anodic oxidation process on lamp surface with strong corrosion resistance and weather resistance, suitable for various complex environments.
The lens adopts high-quality imported optical-grade materials, with accurate light distribution, high efficiency and strong weather resistance.
Works with low standby electric current, convenient for long-distance transportation and storage;
High-precision digital boost constant current control, high efficiency and high; accuracy of constant current, which ensure longer lifespan of the battery.
