EXC All In One Solar Street Lights Owl Ⅱ Series

EXC Owl Ⅱ All In One solar street lamp ia a perfect solar light solution used to light up the parks,...

The brand-new 2.4G wireless/infrared remote control design can modify the controller parameters and read the system information through the handheld device

Design of full digits high precision constant current control mode brings 96% efficiency as maximum

Brand lithium battery with class-A battery cell inside, cycle life ≥ 2000 times

High efficiency monocrystalline silicon sheet, life expectancy ≥ 25 years

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC Owl Ⅱ Series

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Description

Lamp Model	EXC-CR-W06-20	EXC-CR-W06-40	EXC-CR-W06-60	EXC-CR-W06-80	EXC-CR-W06-100	EXC-CR-W06-150
System Power	20W	40W	60W	80W	100W	150W
Remark	Without PV Panel			PV Panel 1*3
Luminous Flux	3000LM	6000LM	9000LM	12800LM	15000LM	22500LM
Solar Panel	18V/50W	18V/80W	18V/90W	36V/50W*3	36V/60W*3	36V/90W*3
Lithium Battery	12/18AH	12/24AH	12/30AH	24/30AH	24/36AH	24/48AH
LED chip	3030
Lamp Body Material	Aluminum Alloy
Photovoltaic Panel	Monocrystalline Silicon
Beam Angle	60°*120°
Control Mode	Infrared/Microwave Induction+Intelligent Dimming
Charging time	5-6 H
Full power lighting hours	8 H
Rainy days	3-5 days
Working temperature	-20°C〜+60°C
IP	IP65
Smart Dimming Lighting Time	≧72H	≧62H	≧48H	≧56H	≧48H	≧48H
Installation height	3-4m	4-5m	5-6m	6-8m	8-10m	12-15m
Product dimension	92436258mm	142436258mm	157436258mm	92436258mm	110436258mm	157436258mm
Packaging dimension	98039090mm	152039090mm	163039090mm	980390120mm	1248462120mm	1630390120mm
GW	12kg	16kg	18kg	14kg	18kg	22kg
Warranty period	3 years

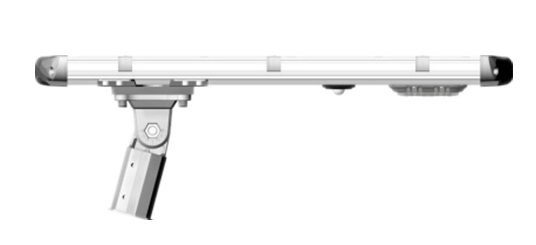

STRUCTURE

RELATED CASES

These Smart Street Lights Had “Conquered” The City

At the end of 2020, EXC Smart Street Light settled in Longhua, Chengde, with the layout of nearly 1,000 smart street lights, covering Dongshan Tunnel and Xihuancheng Road, high-speed connection line and park route, evenly distributed and deep into the main urban roads, guarding the pedestrians at nights.

Cloud Control Empowers Shenyang Zhongjie

As the main provider of Shenyang Zhongjie lighting engineering control system and hardware equipment, Shenzhen EXC-LED Technology Co., Ltd. escorted the project's night scene lighting with a smart landscape lighting cloud control platform.

For more details, please
contact...

EXC Owl Ⅱ series are designed for road lighting, square lighting, sports field lighting, etc. It is applied in road lighting needs to fully meet the special lighting standards of roads.
It uses brand light sources, together with professional light distribution design, thermal, structure and circuit, and power supply design, making this product extremely cost-effective. EXC solar street lamp is an efficient, green, energy-saving and environmentally friendly lighting product.
Equipped with human infrared/microwave induction function, induction delay time can be set (SES series).
Use nine-level dimming function & light control, working time can be set 0~15hrs, power can be set 0~100%.
Multiple intelligent power modes can be selected, and the load power can be automatically adjusted according to the battery capacity.
Works with very low standby current, convenient for long distance transportation and storage.
Metal housing, IP65 protection grade, the solar powered led street light is easy to cope with various harsh environments.
High precision digital boost constant current control algorithm, high efficiency and high accuracy of constant current, which ensure longer lifespan of the battery. (Different from those second-hand battery or low quality battery in markets).
