Products LED Street Lights

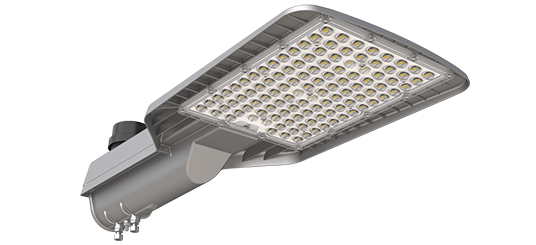

EXC LED Street Light Adventure Series

EXC Adventure series LED street lights use all in one die-casting design and hotoelectric separation...

500H salt spray resistance, super weather resistance, suitable for use in complex outdoor environments;

Large light-emitting surface anti-glare lens, low glare, high reliability;

Separation of light source and power supply cavity; separation of thermoelectricity to improve the reliability of the overall system;

Light efficiency 135~170lm/W, compatible with 2835/3030/5050; high efficiency and energy saving.

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC Adventure SERIES

Specification

Different Model Spec

User Manual

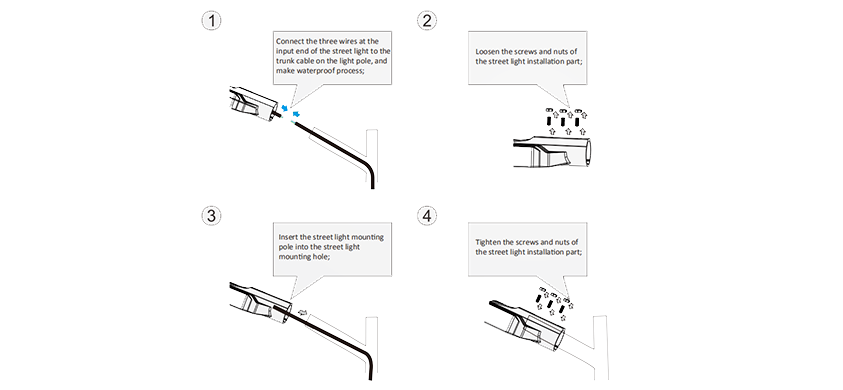

User guide & installation

SPECIFICATION

Specification

Description

Lamp Model	EXC-RL-W01
System power	30W	60W	100W	120W	150W	180W
Working voltage（V）	100V-277Vac
Frequency Range (Hz)	50/60Hz
Power Factor	100~240Vac PF≥0.95 240~277Vac PF≥0.90
Surge Protection	L-N 5KV,L/N-PE 10KV
Total Harmonic Distortion	THDく20%
Light Source	SMD2835 9V/SMD3030 6V/ SMD5050 24V
Emitting Angle	TypeⅡ-M/S
Color Temperature	3000K/4000K/5000K/5700K
IK Rating	IK08
IP Rating	IP66

STRUCTURE

RELATED CASES

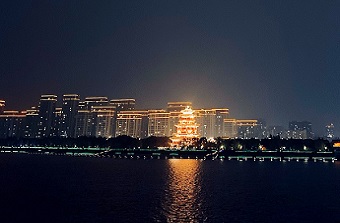

EXC Street Lights Lit up Lishui City

Shenzhen EXC-LED Technology Co., Ltd. uses cloud control platform and landscape lighting products to contribute to the creation of a new ecological smart city in Lishui.

Here It Comes the Smart Street Light in the Central Park of Chaoyang City, Liaoning Province!

EXC assists in the overall improvement of Central Park of Chaoyang City in terms of service, management, and development concepts.

For more details, please
contact...

EXC Adventure series LED street lamps are designed for secondary road lighting, square lighting, countryside, etc, which can fully meet the special lighting needs of the road.
Widely used in street, country road, sidewalk, town road, highway, park, square, scenic area, industrial park, living area and other outdoor road lighting.

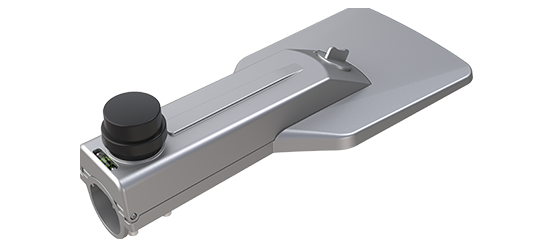

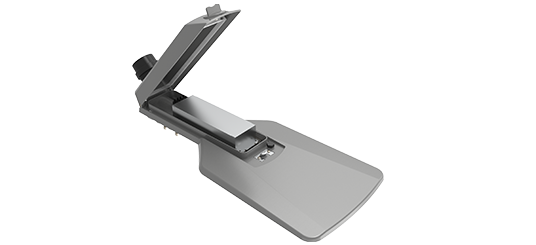

Openable upper cover, knob type tool-free maintenance structure, convenient and fast installation and maintenance.
Glossy back surface, easy to clean and maintain; self-cleaning technology to ensure long-term heat dissipation effect in outdoor environment.
Light distribution T2-M, T2-S, to meet most road lighting needs;High protection level: IP66/IK08;Long life: L80: 50000H/100000H.
Photoelectric separation design ensures the stability of each system and avoids heat accumulation. Integrated led street lamp mask and lamp body heat dissipation technology to provide excellent heat dissipation management performance. The maximum heat dissipation effect ensures the performance and lifespan of the lamp, and the design of the lamp is more compact and smarter.
Installation angle is not adjustable. Multiple models of the led roadway light can be selected to meet the different needs of the market.
