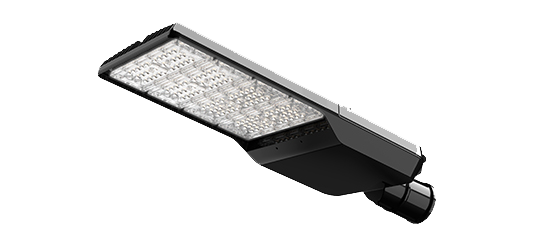

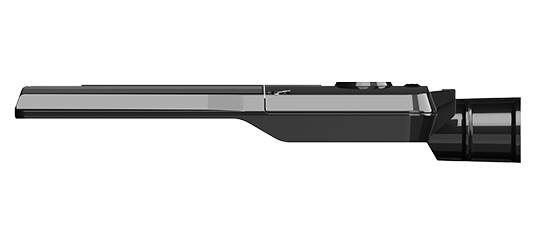

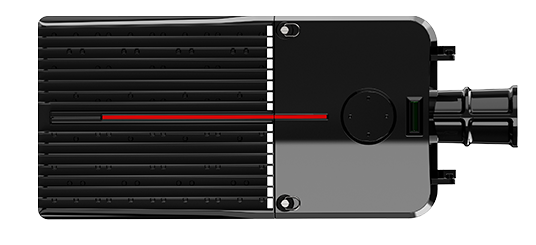

EXC LED Street Lamp Red Flag Series

EXC red flag series all in one integrated led street lamps are widely installed in walkways, parking...

Brand light source and power supply

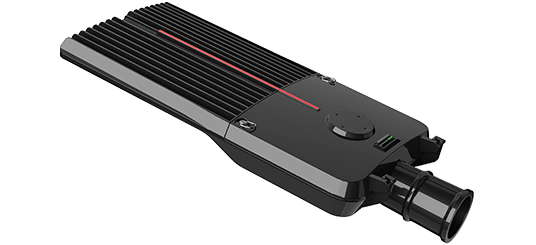

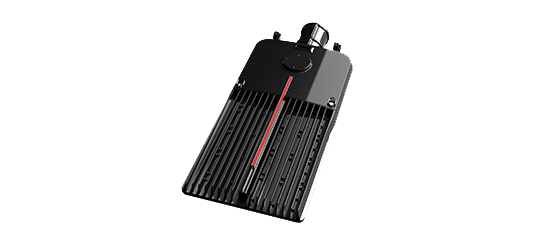

Integrated die-casting heat dissipation lamp body design, excellent heat dissipation and long lifespan

Various light distribution angles, suitable for various lighting applications

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC Lamp Red Flag Series

Specification

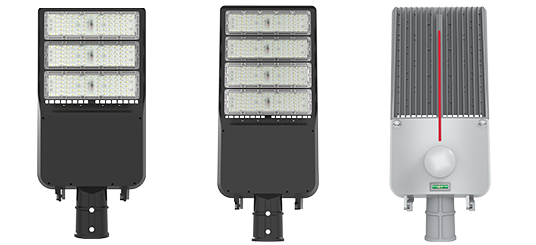

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Description

Lamp	EXC-RL-Z01-180	EXC-RL-Z01-240
Model	180W	240W
Input Voltage （Vac）	AC90-305V 50/60HZ
Power Factor (PF)	≥0.95
Power Efficiency	≥0.92
THD	＜20%
Light Source	EMC 3030
Driver	MOSO，SOSEN，Inventronics，MEANWELL
CCT (K)	3000K/4000K/5000K/5700K
CRI	Ra＞70
Tc（℃）	≤80（Ta=25℃）
Efficiency	＞130lm/W
Light distribution	TYPE2 /TYPE3 /TYPE4
Lifespan	＞50000H
Material	ADC12、PC
IP	IP66
IK	IK10
Working temperature	-30℃ to +50℃
Working humidity	10%~90%RH
Available interface	0-10V/PWM
Material	Aluminum alloy ADC12/PC
Installation	Horizontal installation / mounting interface arm φ40-60mm

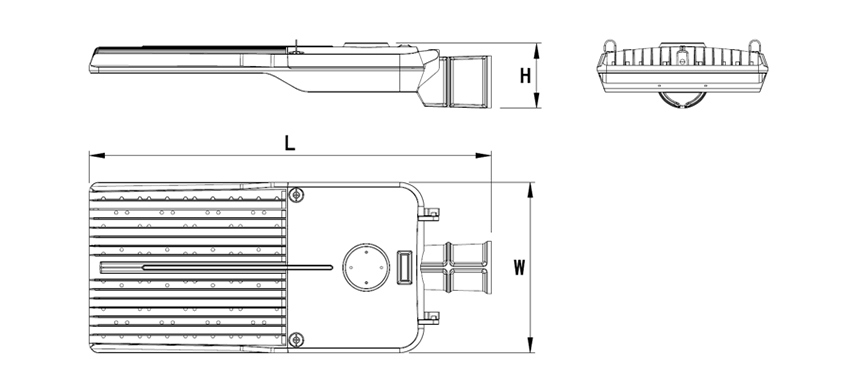

Product Dimension	565270109mm	640270109mm
Packaging Dimension	645350190/1pcs	725350190/1pcs

INSTALLATION

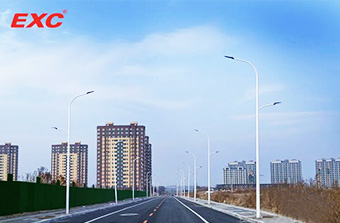

RELATED CASES

Here It Comes the Smart Street Light in the Central Park of Chaoyang City, Liaoning Province!

EXC assists in the overall improvement of Central Park of Chaoyang City in terms of service, management, and development concepts.

EXC Helps Huangshagang Town to Draw a New Chapter in the Development of Smart City

EXC smart street lighting system provides systematic and integrated global perception, information release, and terminal management services for Huangshagang Town.

For more details, please
contact...

EXC red flag series LED street lights are high-efficiency lights designed by EXC for outdoor road lighting.
Environmental protection and pollution-free: all materials of the lamp are free of lead, mercury and other harmful substances that affect the environment; there is no ultraviolet, infrared and other radiation harmful to human health; there is no light pollution to the surrounding environment;
The outdoor electrostatic spraying process on the surface of the lamp body has strong corrosion resistance and weather resistance, and is suitable for various complex environments;
The lens adopts high-quality imported optical-grade materials, with accurate light distribution, high efficiency and strong weather resistance;
Protection against electric shock: Class 1
Use well-known brand waterproof isolation switching power supply with high safety and reliability.
The photoelectric separation design ensures the stability of each system and avoids heat accumulation.
High protection design, high impact resistance and waterproof and dustproof performance.
