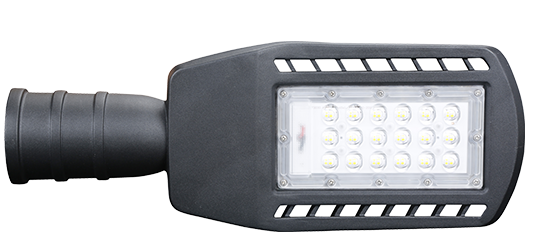

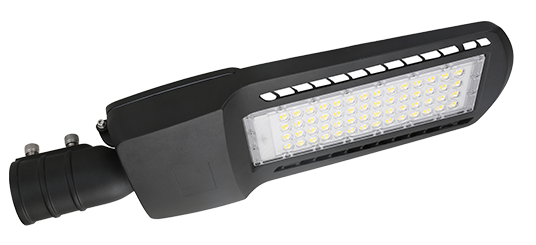

EXC LED Street Light Cobra Series

EXC Cobra series LED street lamp lights are used for road lighting, square lighting, sports field li...

Integrated Die-casting design, featured with beautiful and modern style

Efficient heat dissipation, stable performance

10 KV /20 KV lightning protection expansion, improve the stability of the led street lamp

With a variety of intelligent interfaces, street lamps are more intelligent and digital

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC Cobra SERIES

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Packaging Details

Description

Lamp Model	EXC-RL-W03-060	EXC-RL-W03-120	EXC-RL-W03-180
System power	30W/40W/50W/60W	80W/100W/120W	130W/150W/180W
Input Voltage	100V-240Vac
Input frequency	50/60Hz
Power Factor	100~240Vac PF≥0.95
SPD	10kv/20kv
THD	THDく20%
Light Source	3030
Luminous Angle	Type2/Type3
Color Temperature	3000K/4000K/5000K/6000K
IK Rating	IK08
IP Rating	IP65

STRUCTURE

RELATED CASES

Here It Comes the Smart Street Light in the Central Park of Chaoyang City, Liaoning Province!

EXC assists in the overall improvement of Central Park of Chaoyang City in terms of service, management, and development concepts.

For more details, please
contact...

Product Specification	EXC-RL-W03-060	EXC-RL-W03-120	EXC-RL-W03-180
Length (mm)	474	584	666
Width(mm)	210	292	292
High(mm)	248	230	230
Volume	0.02468592	0.03922144	0.04472856
PCS	1	1	1
G.W KG/PCS	5.20	7.70	9.30

EXC Cobra series LED street lights are high-efficiency lights designed by EXC for outdoor road lighting.
These lamps can be widely used for energy-saving lighting in highways, urban main and secondary roads, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, courtyards, tunnels, under bridges and other places.

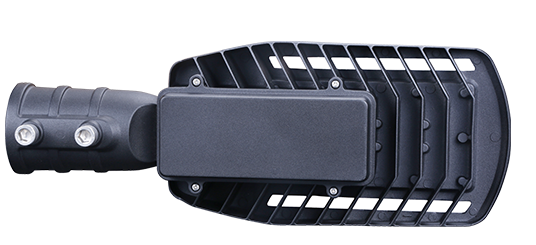

Lamp housing structure is made of high-quality aluminum alloy die-casting; the surface is outdoor electrostatic sprayed technology, which has strong weather resistance and high reliability; the surface is smooth without exposed heat dissipation teeth, the wind resistance coefficient is small, and there is no accumulation of foreign matter.
Brand light source, power supply, high-efficiency matching, long lifespan of lamps.

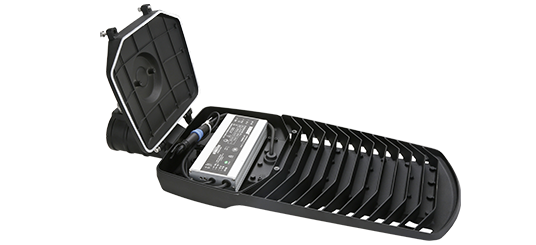

Power supply cavity, designed to open quickly by hand, with a flip-top cover, which is convenient for maintenance and installation.
Street lamps can be equipped with many functions, such as respirator, single lamp control and other functions, which can be selected according to customer needs. Adopt integrated lamp body heat dissipation technology to provide excellent heat dissipation management performance. The maximum heat dissipation effect ensures the performance and lifespan of the lamp, and the design of the lamp is more compact and smarter.
Structural protection: The luminaire adopts an all in one shape design, with simple structure and high stability.
Installation angle is not adjustable, three models of large, medium and small can be selected to meet the different needs of the market.
