EXC LED Street Lamp Antelope Series

EXC Antelope Series outdoor led street light can be used in roads, pathway, highway, parking lots,et...

Outdoor road lighting for streets, country roads, sidewalks,etc.

Brand light source, power supply, long lifespan.

10KV/20KV lightning protection expansion.

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

EXC Lamp Cayman Series

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Description

Lamp Model	EXC-RL-W08
Power(W)	30/50W	60/100W	120/200W	300W
Input Voltage （Vac）	100-305Vac
Frequency Range (Hz)	50\60Hz ±3Hz
Power factor	≥0.95
Power efficiency	≥0.90
Light Source	3030
Power Brand	MOSO, SOSEN, Inventronics, MEAN WELL
CCT	3000K±300K/4000K±400K/5000K±500K
IP	IP 65
IK	IK08
Light distribution	TYPE2 /TYPE3 /TYPE4
Tc（℃）	≤80（Ta=25℃）
Efficiency	≥120 lm/w
THD	＜20%
Working temperature	-30°C～+45°C
Working humidity	10-90%
Lifespan（H）	＞30000

STRUCTURE

RELATED CASES

Here It Comes the Smart Street Light in the Central Park of Chaoyang City, Liaoning Province!

EXC assists in the overall improvement of Central Park of Chaoyang City in terms of service, management, and development concepts.

For more details, please
contact...

LED Street Light Adopt an all in one die-casting design, streamlined design. A variety of light distributions can be selected to adapt to all road lighting, forming an optimized road lighting environment.

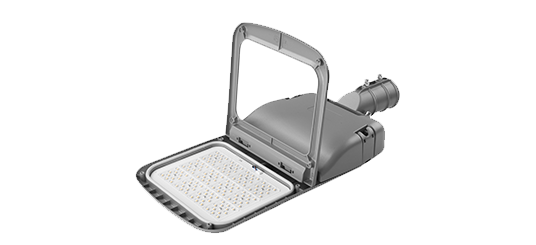

The power supply cavity is designed to open quickly by hand, with a flip-top cover, which is convenient for maintenance and installation.
With its high performance, high reliability, and high light control technology, the EXC-RL-W08 series provides a highly competitive solution for road lighting. The beautiful shape will also become a unique landscape of the city.

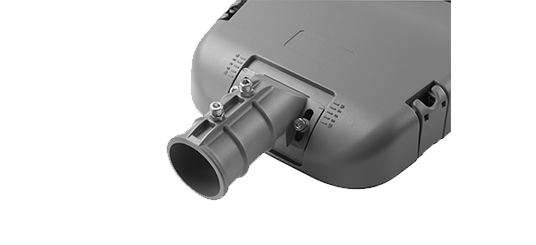

The EXC-RL-W08 led street light can be adjusted flexibly, the elevation angle of the lamp can be adjusted according to the site conditions. It can be compatible with horizontal and vertical installation.
Adopt all in one lamp body heat dissipation technology to provide excellent heat dissipation performance. The maximum heat dissipation effect ensures the performance and lifespan of the lamp. The design of the lamp is more compact and smarter.
Environmental protection and pollution-free: all materials of the lamp are free of lead, mercury and other harmful substances that affect the environment; there is no ultraviolet, infrared and other radiation harmful to human health; there is no light pollution to the surrounding environment;
