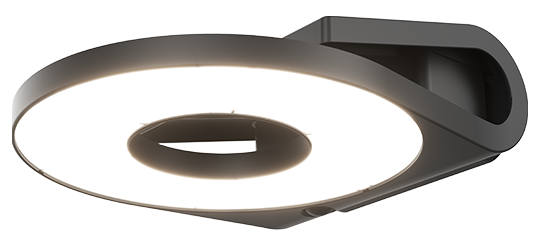

EXC-YR-Z04 Outdoor Solar Wall Light

EXC-YR-Z04 outdoor solar wall light is mainly installed on the exterior walls of buildings, courtyar...

Brand Class A lithium battery, cycle life ≧2000 times.

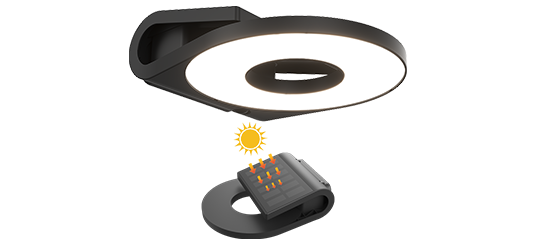

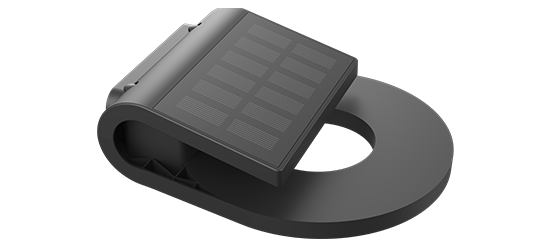

High-efficiency monocrystalline solar panel with light

Precise motion sensor

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source Life

DOWNLOAD
RESOURCES

Catalogue

EXC-YR-Z04

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Description

Lamp Model	EXC-YR-Z04
Lamp Power	1W
Solar panel	5V/1W
Battery	3.7V/2000mAh
LED chip	2835
Working Mode	Normally keep dim brightness，turn to full brightness and remain 10s after people pass by.
Rainy days	2-3 days
Working Time (full power)	6 hours
Charging time	6-7 hours
Working mode	Time control+Microwave sensor
Sensor distance	5~8M
CCT	6000K
Material	ABS
Working Temperature	-20°C〜+60°C
IP	IP65
Installation	Wall mount
Product Dimension	2099840mm
Packaging Dimension	44521550mm
Packing detail	One kit per carton
Warranty Period	1 year
Gloss weight	0.43kg/box;14kg/carton
Net weight	0.31kg
Packaging dimension	Gift box：18216456(mm)/Carton：508380300(mm)
Packing rules	1pcs/box；30boxes/carton

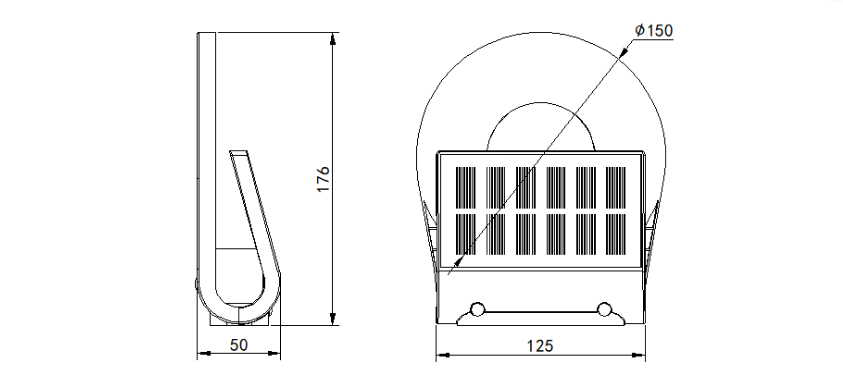

STRUCTURE
