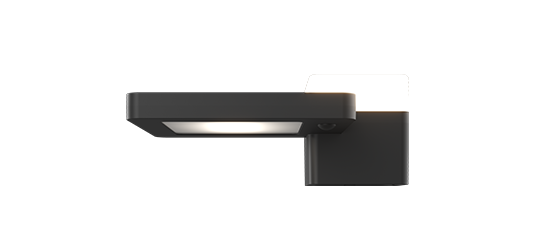

EXC-YR-Z03 Outdoor Solar Wall Light

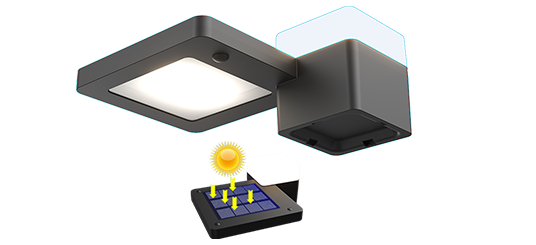

Outdoor solar wall light use solar light as energy source. EXC-YR-Z03 Solar Wall Light is a perfect ...

Works with low standby electric current, convenient for long-distance transportation and storage.

With dimming function, Working time settings: 0-15hours, Power can be adjusted 0%-100%

Control Mode: Time control+ Microwave sensor

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source Life

DOWNLOAD
RESOURCES

Catalogue

EXC-YR-Z03

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Specification

Description

Lamp Model	EXC-YR-Z03A	EXC-YR-Z03B
Power	1W	1.5W/0.5W
Solar panel	5V/1.2W	5V/2W
Battery	3.7V/2000mAh	3.7V/4000mAh
Light source	COB
Sensor mode	Time control+ Mircowave sensor
Sensor distance	5~8M
CCT	6000K
Working Mode	Normally keep dim brightness，turn to full brightness and remain 10s after people pass by.
Working Time (full power)	7 hours
Charging time	7 Hours
Material	ABS
Working Temperature	-20°C〜+50°C
IP	IP65
Product Dimension	20518553mm	20518583mm
Packing detail	One kit per carton
Gloss weight	0.33kg	0.35kg
Net weight	0.23kg	0.25kg
Warranty Period	1 year

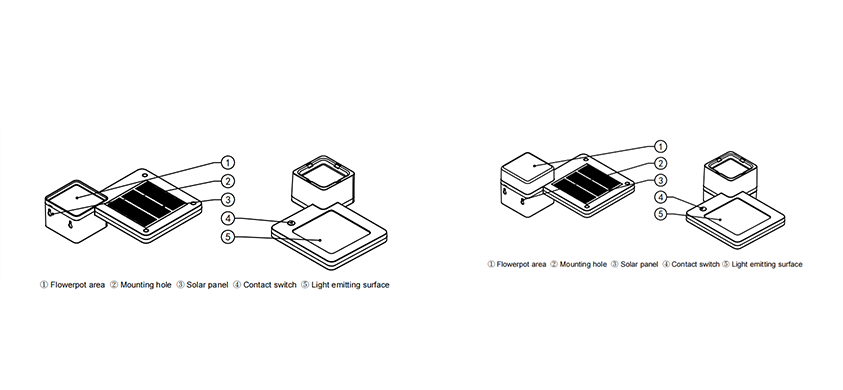

STRUCTURE
