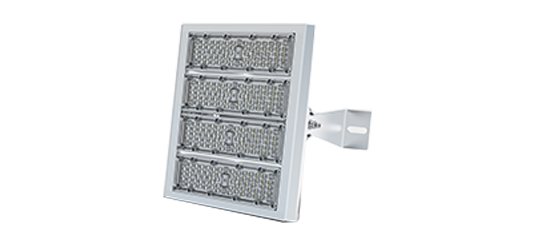

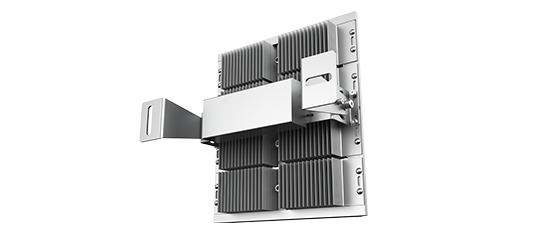

EXC-TL-Z01 Tunnel Light

EXC-TL-Z01 LED tunnel lights are used for large-area flood lighting in tunnels, workshops, large war...

Use branded waterproof switching power supply with high safety and reliability

Use module series design, the tunnel light is easy to maintain and has flexible power expansion

Surface of the module is anodized with strong corrosion resistance and weather resistance, suitable for various complex environments;

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

SPECIFICATION

Specification
Description
Lamp ModelEXC-TL-Z01-60EXC-TL-Z01-120EXC-TL-Z01-180EXC-TL-Z01-240EXC-TL-Z01-300
System Power60W120W180W240W300W
Input voltageAC90-305V 50/60HZ
Power factor(PF)>0.95
Light source3030/5050
CCT(K)3000K/4000K/5000K/5700K
CRIRa>70
Efficiency>130lm/W; 150lm/W
Lifespan>50000H
MaterialAL6063
IPIP66
Working temperature-40℃ to +50℃
Working humidity10%~90%RH
Optional interfaces0-10V/PWM
EXC-TA1 series LED tunnel light products are high-efficiency lights designed by EXC for outdoor tunnel lighting, which can be used for highway tunnels, urban tunnels, underpass lighting, culvert lighting, etc.
Lens use imported optical-grade materials to provide accurate light distribution, high efficiency and strong weather resistance;
Multiple light distribution angles, suitable for various lighting applications
PLC/ZIGBEE and other intelligent controls are optional
Protection against electric shock: Class 1

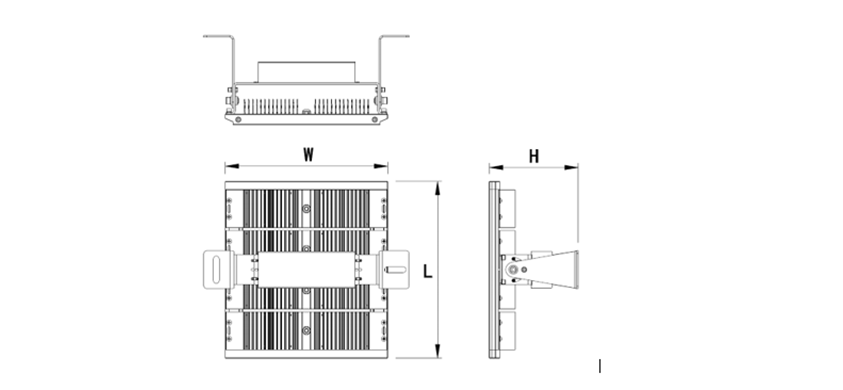

INSTALLATION

For more details, please
contact...
