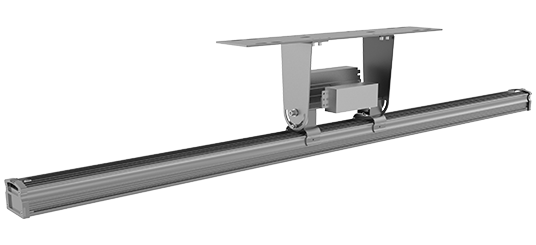

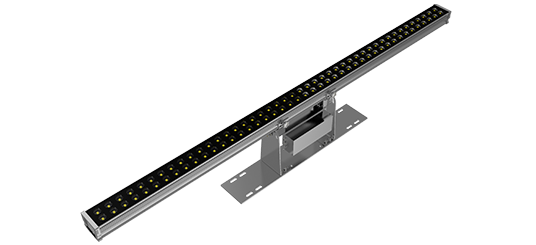

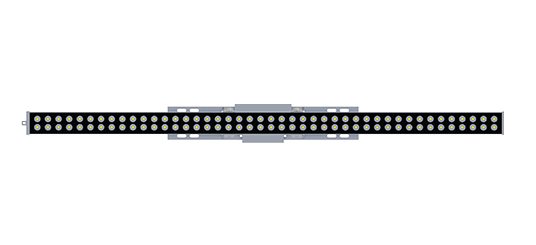

EXC-TL-Z02 LED Tunnel Light

EXC-TL-Z02 tunnel lamp series, designed for tunnel lighting, and it is very sturdy and durable. Main...

Use the best brand driver, has higher safety and reliability

Linear design, flexible length can be customized

PLC/ZIGBEE etc. smart controller can be choose; Bracket installation is quick and simple, and the angle is adjustable

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

SPECIFICATION

Specification
Description
Lamp Model EXC-TL-Z02
System Power 15-30W 45-60W 90-120W 150-180W
Power factor(PF) >0.95
Light source 3030/5050
CCT(K) 3000K/4000K/5000K/5700K
CRI Ra>70
Efficiency ≥120 Lm/W
Lifespan >30000H
Material AL6063
IK IK07
IP IP65
Working temperature -30℃ to +45℃
Working humidity 10%~90%RH
Installation Bracket Installation
EXC-TL-Z02 series LED tunnel light products are used for tunnel road lighting.
Linear design, flexible length can be customized
Seamless but joint, uniform light output
Power: 15W-180W
Multi channel convection design, fast heat dissipation

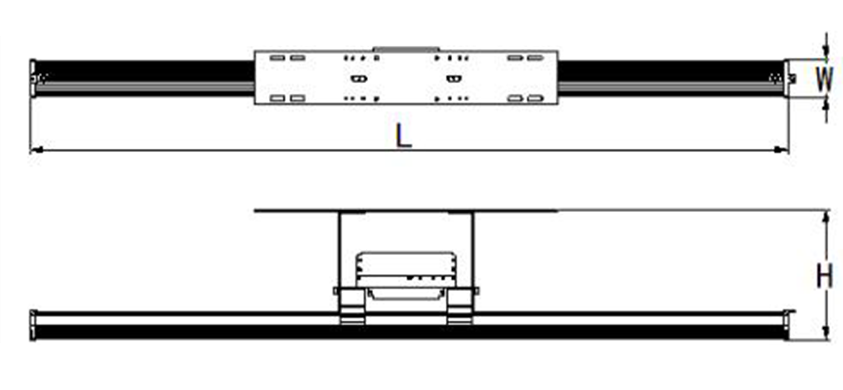

STRUCTURE

RELATED CASES

For more details, please
contact...
