Products Control Systems

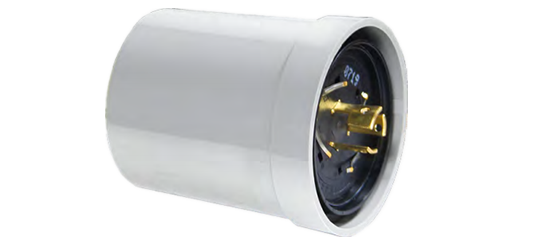

Single Lamp Controller (NEMA interface) Series

Adopting the worlds leading wireless communication module, with NB-IOT, Cat.1, LoRaWAN, Zigbee serie...

Standard NEMA interface shell

1 channel 0-10V/PWM dimming output, 1 channel relay output

AC94264V input, maximum load 800W; With current, voltage, power, temperature, leakage detection functions, with over-current protection, short-circuit protection, and lamp status detection

Get A Quote

Load safety design

Projection distance

RGB full color

Weight

Source life

DOWNLOAD
RESOURCES

Catalogue

Single Lamp Controller (NEMA interface) Series

Specification

Different Model Spec

User Manual

User guide & installation

SPECIFICATION

Available Models

Description

Specification Model	EXC-TL1-N110E	EXC-TL1-C110E	EXC-TL1-L110E	EXC-TL1-Z110E
Communication Method	NB-IOT	Cat.1	LoRaWAN	Zigbee
Supply voltage	AC85-265V	AC85-300V	AC85-265V	AC85-265V
IP	IP66	IP66	IP65	IP66
Transmit power	23dBm	23dBm	20dBm±1dBm（max）	19dBm
Dimming Channel	1
Load Power	800W
IP	IP66
Output rated current	5A Max
Interface	NEMA Interface

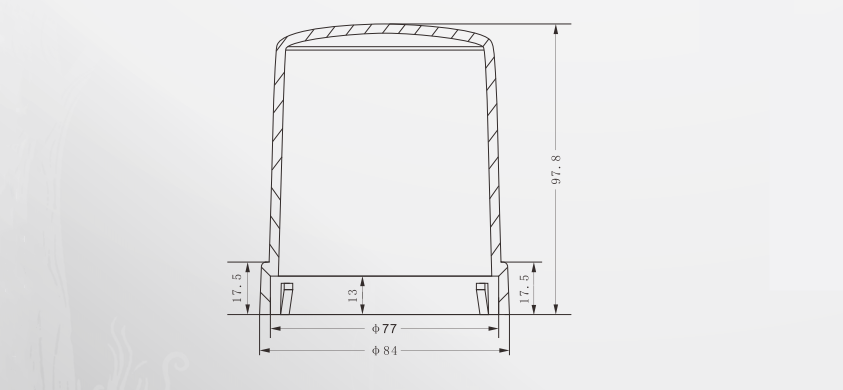

STRUCTURE
